Chart 3
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Chart 3

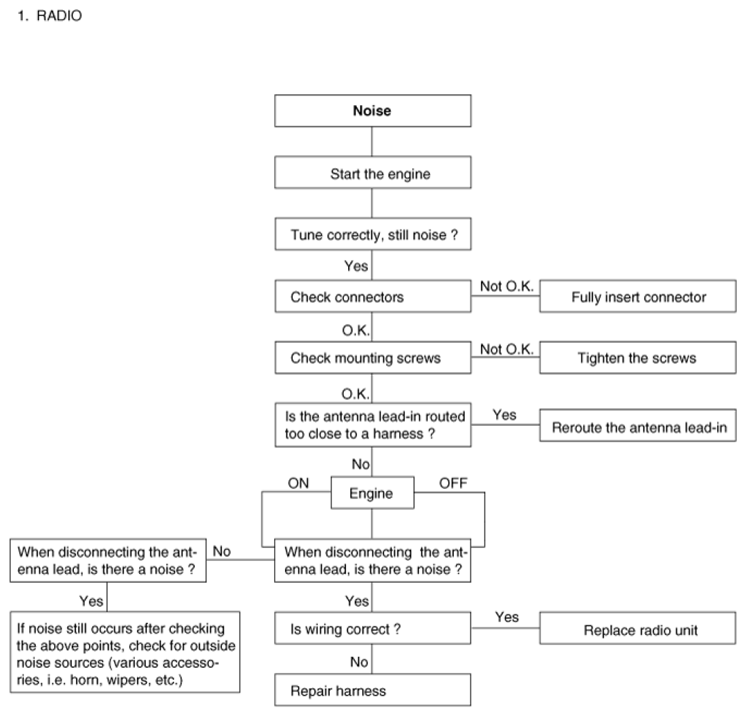

Fig 1: Customer Complaint Troubleshooting Flow Chart 3
Courtesy of KIA MOTORS AMERICA, INC.
