Engine Control System Diagnosis (3 Of 3) - 2.0L
>>
DTC P2123: Throttle Pedal Position Sensor Switch 'D' Circuit High Input
>>
General Information
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Circuit Diagram

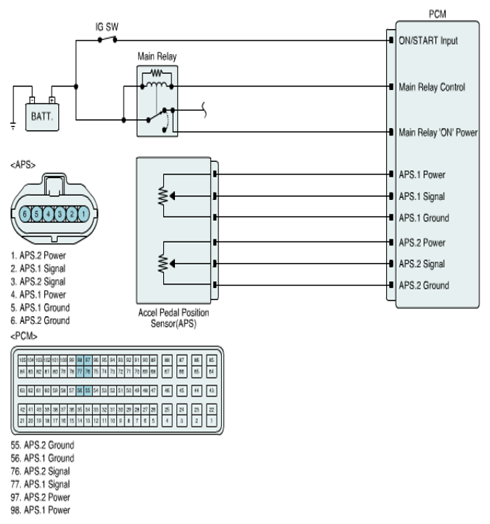

Fig 1: Accel Position Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
