Components and Components Location: Components

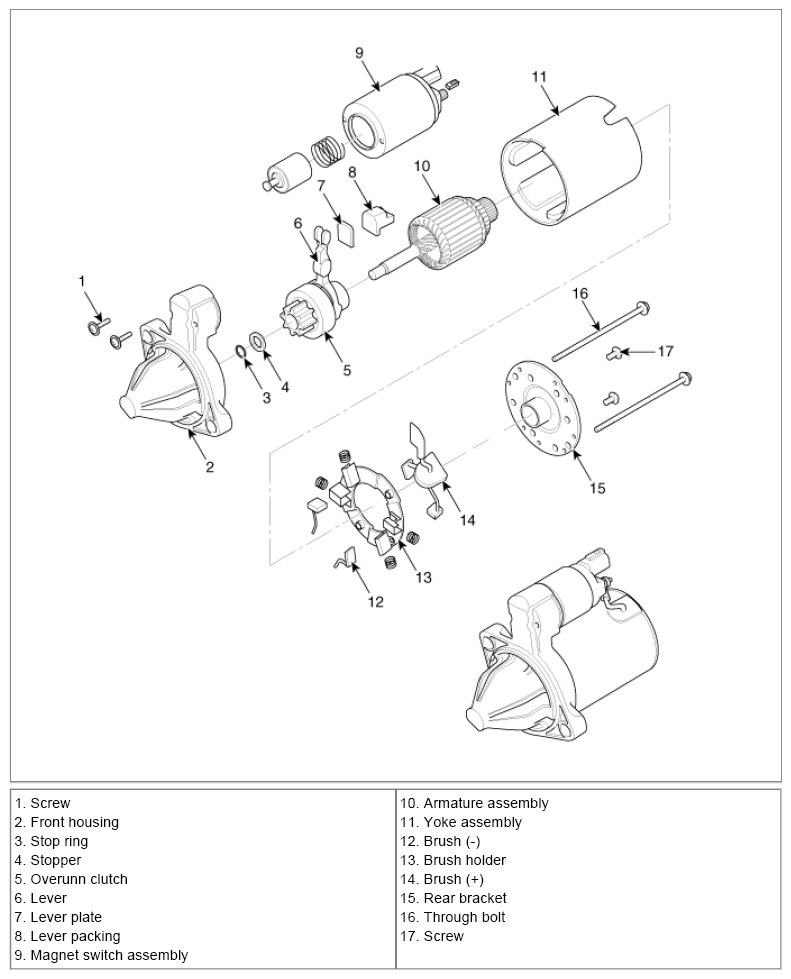

Fig 1: Identifying Starter Motor Components

G08321263

Courtesy of KIA MOTORS AMERICA, INC.
