Engine Control System Diagnosis (2 Of 2)
>>
DTC P062E: Fuel Injector Driver Circuit Performance (Bank 2)
>>
General Information
>>
Diagnostic Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Circuit Diagram

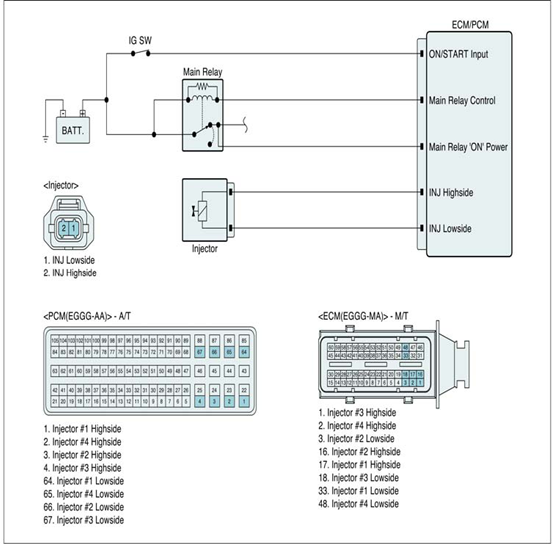

Fig 1: Injector - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
