Circuit Diagram: (A/T)

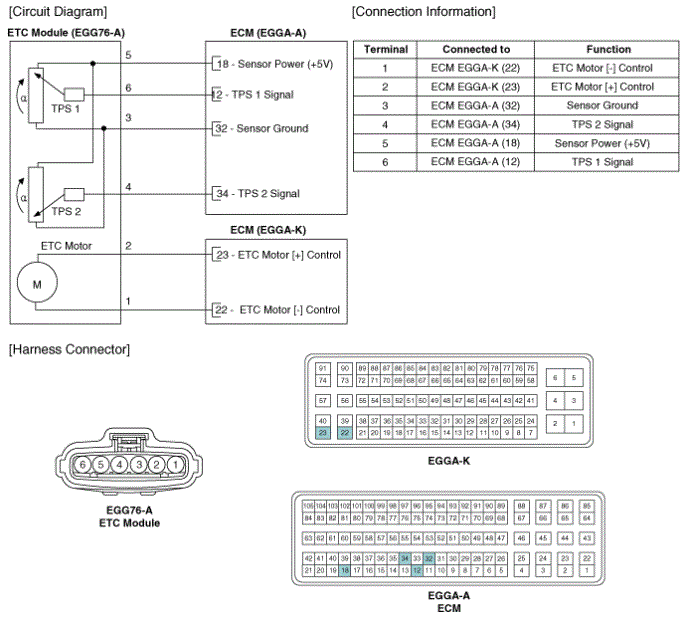

Fig 1: ETC Motor - Circuit Diagram (A/T)

G08327937

Courtesy of KIA MOTORS AMERICA, INC.
