Connector Pin Information

No.	Connector A	Connector B	Connector C
1	-	CAN High	GND
2	Camera video	-	Clock
3	Camera video GND	-	CD input LED
4	Camera power GND	Steering remote control	Eject
5	SPDIF GND	-	-
6	SPDIF (+)	-	-
7	ALT L	iPod video	Encoder L CW
8	Illumination (+)	AUX Audio right	Encoder L CCW
9	R position	AUX Audio ground	Encoder R CW
10	-	Mic (+)	Encoder R CCW
11	Camera power	ACC	Key left
12	NAVI voice (-)	Battery (+)	Key right
13	NAVI voice (+)	CAN Low
14	-	AV tail
15	SPDIF (-)	P position
16	Door unlock	Vehicle speed
17	Illumination (-)	Steering remote GND
18	Antenna power	-
19		iPod video GND
20		AUX detect
21		AUX Audio left
22		Mic (-)
23		Ground
24		Ground

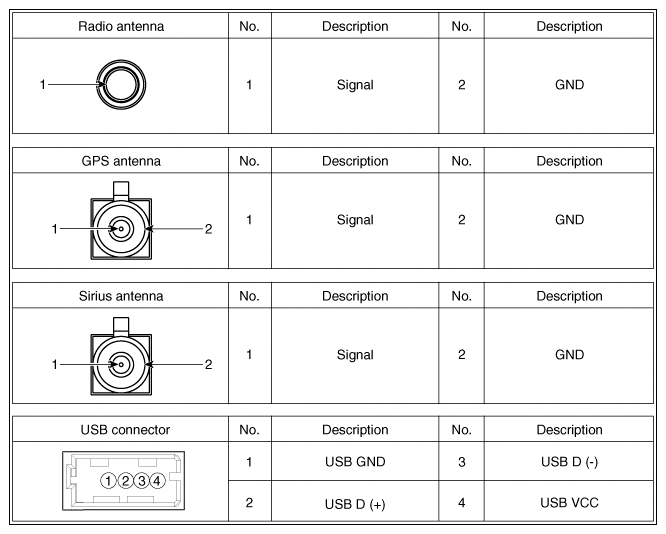

Fig 1: Antenna Description Chart

Courtesy of KIA MOTORS AMERICA, INC.

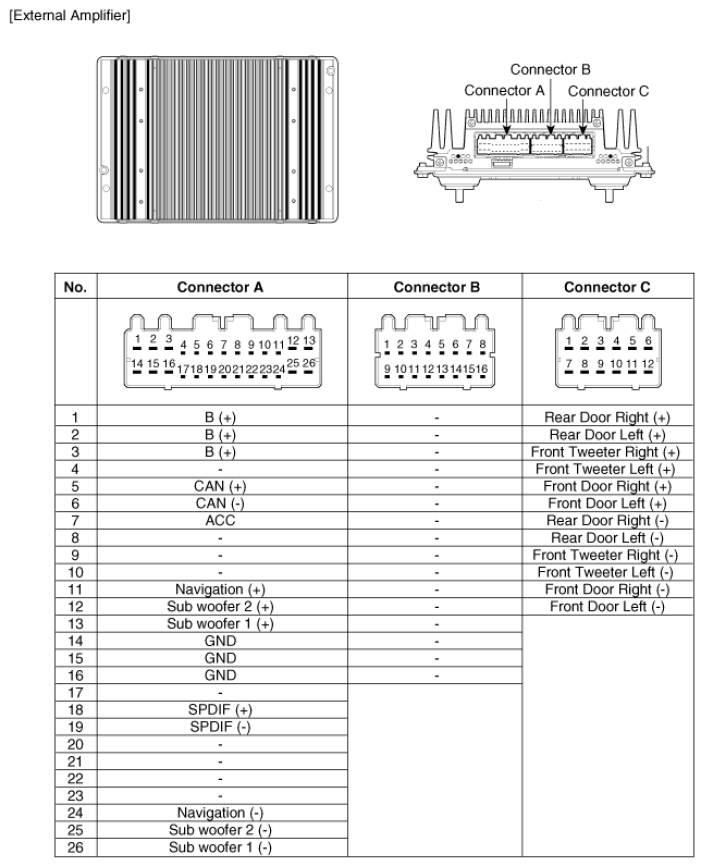

Fig 2: Identifying External Amplifier Connector A, B And C

Courtesy of KIA MOTORS AMERICA, INC.

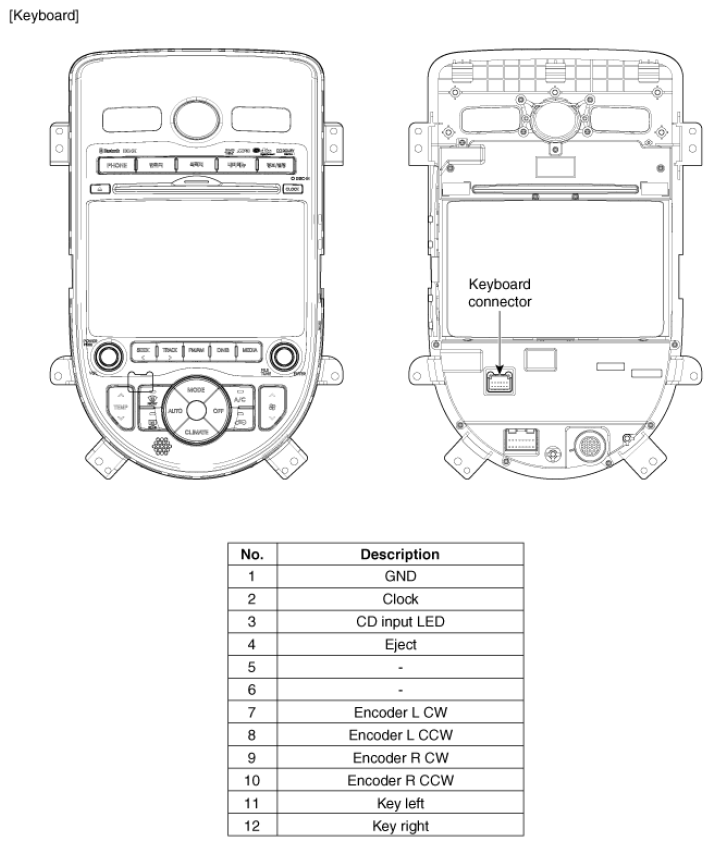

Fig 3: Identifying Keyboard And Keyboard Connector

Courtesy of KIA MOTORS AMERICA, INC.

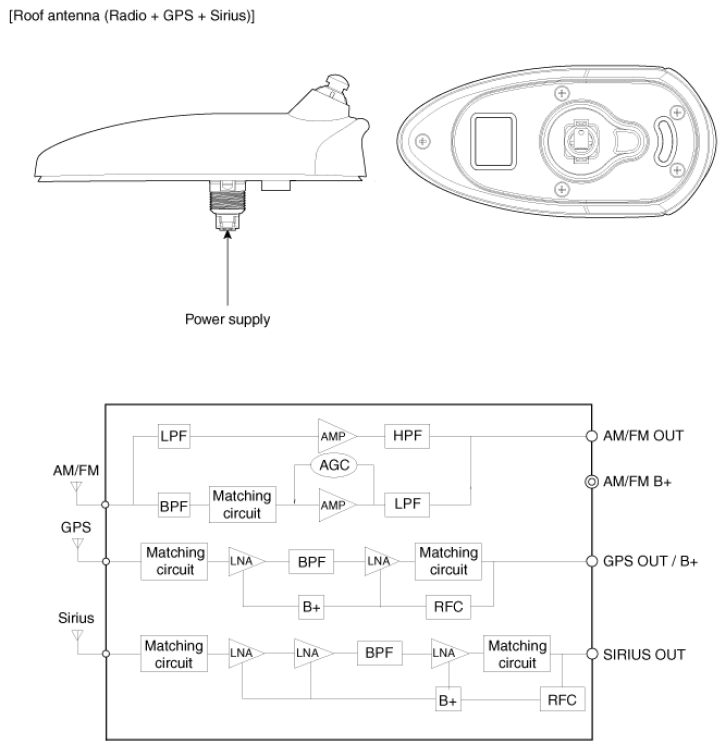

Fig 4: Roof Antenna (Radio+GPS+Sirius) - Block Diagram

Courtesy of KIA MOTORS AMERICA, INC.
