Components and Components Location: Components

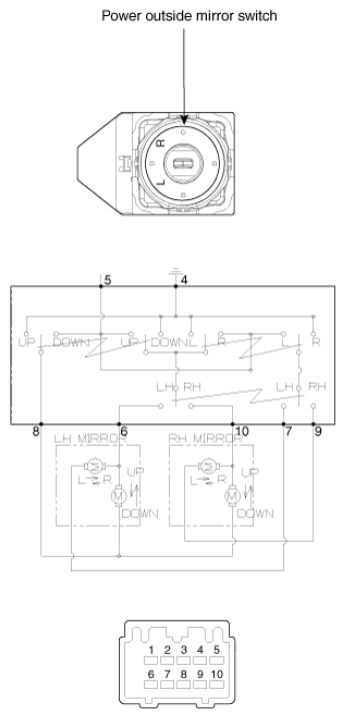

Fig 1: Identifying Power Outside Mirror Switch Terminals
G08329254Courtesy of KIA MOTORS AMERICA, INC.
