Components and Components Location: Components

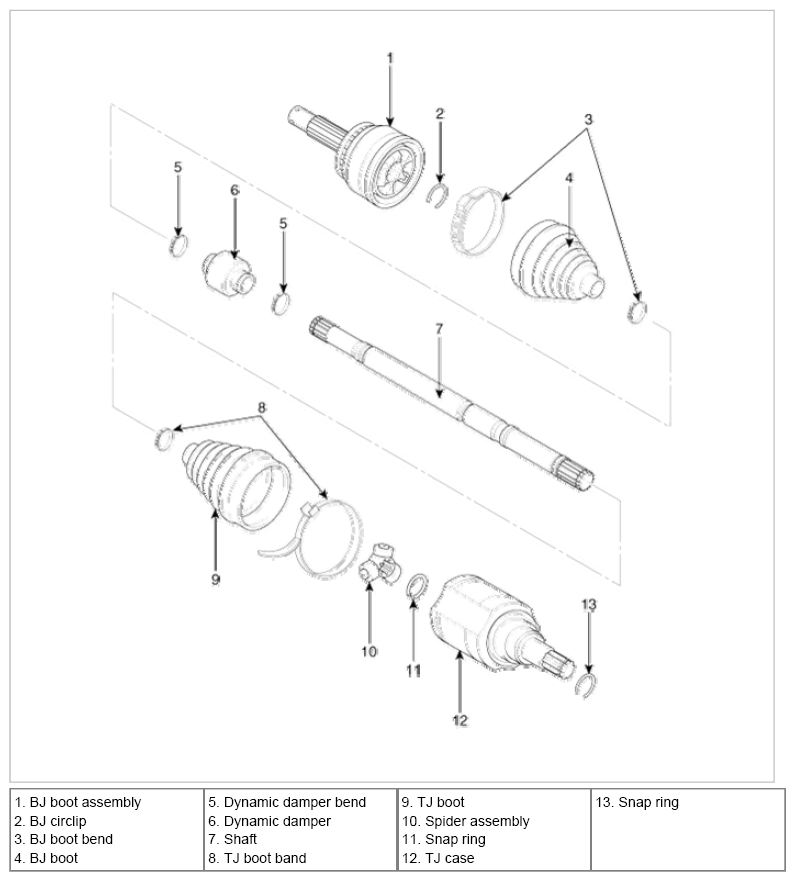

Fig 1: Identifying Front Driveshaft Components
G08328384Courtesy of KIA MOTORS AMERICA, INC.
