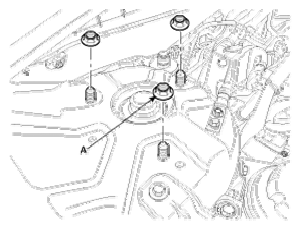

Install the front strut assembly to the wheel housing panel by tightening the mounting nuts (A).
Tightening torque:

45 ~ 60 N.m (4.5 ~ 6.0 kgf.m, 33 ~ 43 lb-ft)

Fig 1: Identifying Mounting Nuts
Courtesy of HYUNDAI MOTOR CO.
Connect the front strut assembly with the knuckle by tightening the bolt & nut (B).
Tightening torque:

15.5 ~ 17.5 N.m (15.5 ~ 17.5 kgf.m, 112 ~ 127 lb-ft)
Connect the stabilizer link (A) with front strut assembly and then tighten the nut.
Tightening torque:

100 ~ 120 N.m (10.0 ~ 12.0 kgf.m, 72 ~ 87 lb-ft)

Fig 2: Identifying Stabilizer Link
Courtesy of HYUNDAI MOTOR CO.
Install the wheel speed sensor cable to front strut assembly.

Fig 3: Identifying Wheel Speed Sensor Cable
Courtesy of HYUNDAI MOTOR CO.
Install the front wheel & tire.
Tightening torque :

90 ~ 110 N.m (9.0 ~ 11.0 kgf.m, 65 ~ 80 lb-ft)
