Repair Procedures: Removal

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front wheel & tire.
  2. Remove the wheel speed sensor cable from the front strut assembly.
    Fig 1: Identifying Wheel Speed Sensor Cable
    G06857290Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the stabilizer link (A) with the front strut assembly after loosening the nut.
  4. Disconnect the front strut assembly with the knuckle by loosening the bolt & nut (B).
    Fig 2: Identifying Stabilizer Link
    G06857291Courtesy of HYUNDAI MOTOR CO.
  5. Remove the front strut assembly from the wheel housing panel by loosening the mounting nuts (A).

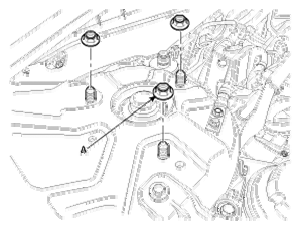

    Fig 3: Identifying Mounting Nuts
    G06857292Courtesy of HYUNDAI MOTOR CO.
