Engine Mounting: Troubleshooting
WARNING:
This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.

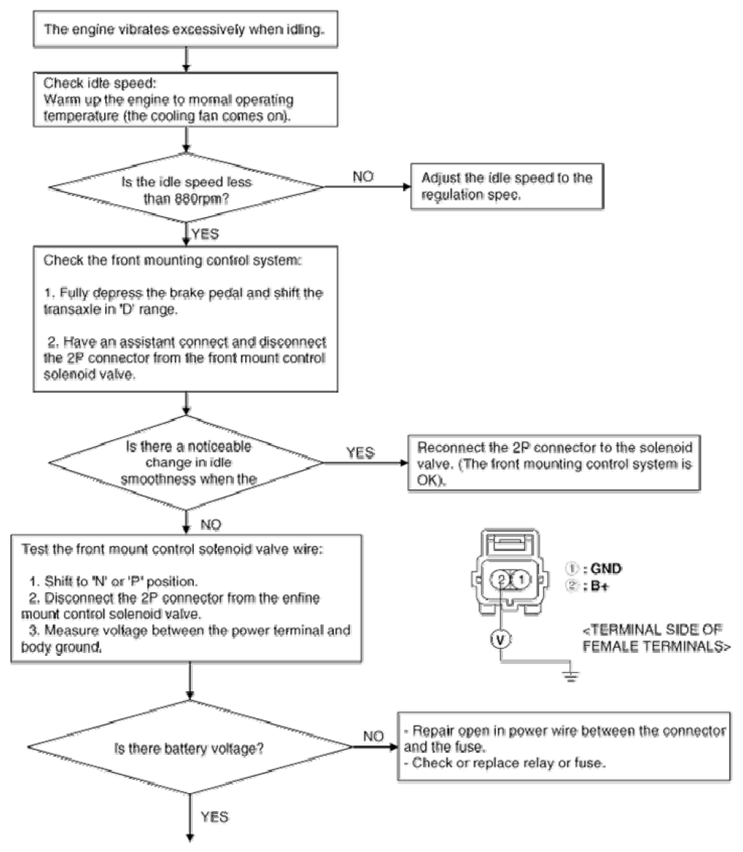

Fig 1: Troubleshooting Flow Chart (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

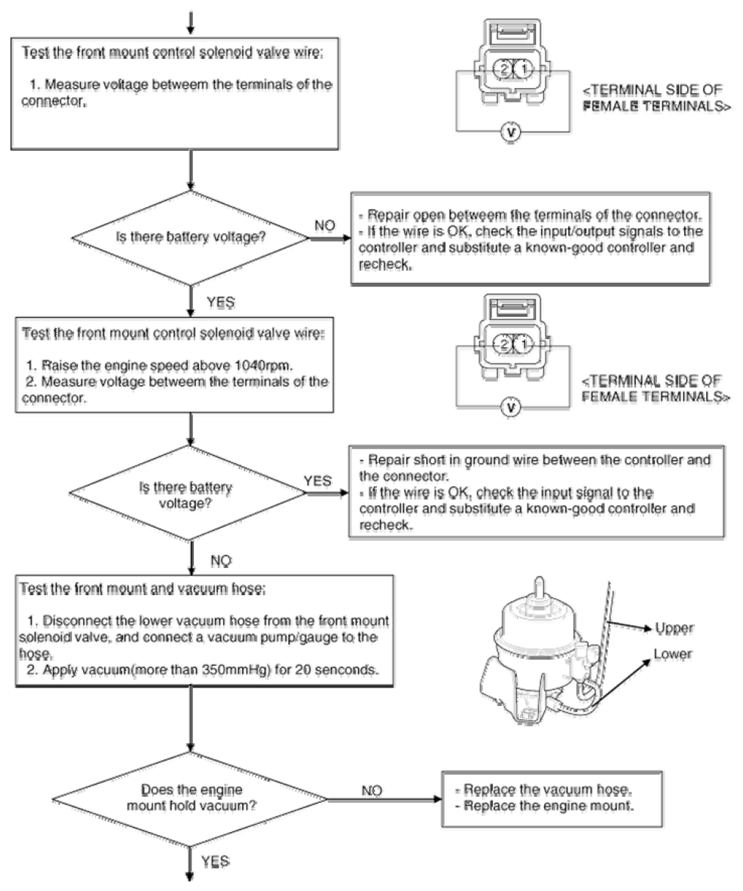

Fig 2: Troubleshooting Flow Chart (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

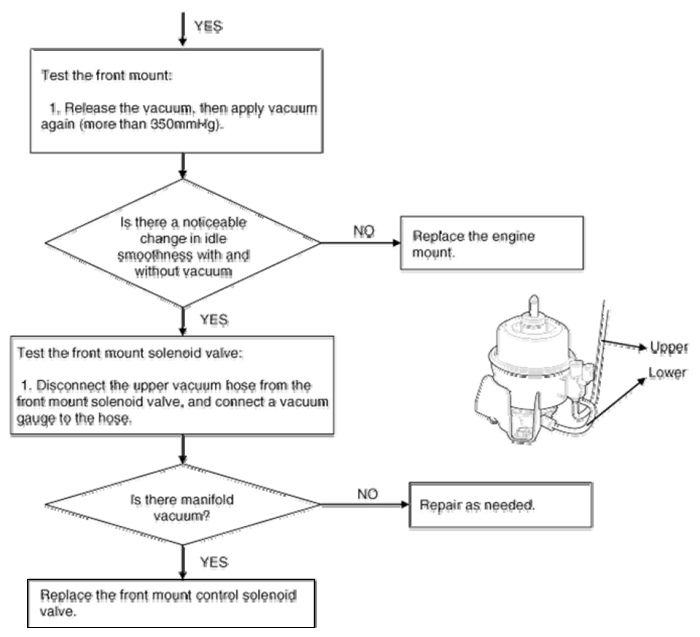

Fig 3: Troubleshooting Flow Chart (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
