Repair Procedures: Replacement

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the extension cover (A).
    Fig 1: Identifying Extension Cover
    G07427004Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the shower duct (A).
    Fig 2: Identifying Shower Duct
    G07427005Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the screws and then remove the cluster ionizer (A).

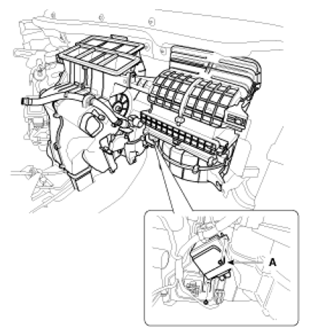

    Fig 3: Identifying Cluster Ionizer
    G07427006Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse order of removal.
