Teaching Procedures: Notes

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Key Teaching Procedure.
Key teaching must be done after replacing a defective PCM (ECM) or when providing additional keys to the vehicle owner. The procedure starts with a PCM (ECM) request for vehicle specific data (PIN code: 6 digits) from the tester. The "virgin" (ECM) stores the vehicle specific data and the key teaching can be started. The "learnt" PCM (ECM) compares the specific data from the tester with the stored data. If the data is correct, the teaching can proceed.

If incorrect vehicle specific data has been sent to the PCM (ECM) three times, the PCM (ECM) will reject the request teaching for one hour. This time cannot be reduced by disconnecting the battery or any other manipulation. After reconnecting the battery, the timer starts again for one hour.

The key teaching is done by ignition on with the key and additional tester commands. The PCM (ECM) stores the relevant data in the EEPROM and in the transponder. Then the PCM (ECM) runs the authentication required for confirmation of the teaching process. The successful programming is then confirmed by a message to the tester.

If the key is already known to the PCM (ECM) from a previous teaching, the authentication will be accepted and the data is updated. There is no changed transponder content (this is impossible for a learnt transponder).

The attempt to repeatedly teach a key, which has been taught already during the same teaching cycle, is recognize PCM (ECM). This rejects the key and a message is sent to the tester.

The PCM (ECM) rejects invalid keys, which are presented for teaching. A message is sent to the tester. The key can be invalid due to faults in the transponder or other reasons, which result from unsuccessful programming of data. If the PCM (ECM) detects different authenticators of a transponder and an PCM (ECM), the key is considered to be invalid.

The maximum number of taught keys is 8

If an error occurs during the Immobilizer Service Menu, the PCM (ECM) status remains unchanged and a specific fault code is stored.

If the PCM (ECM) status and the key status do not match for teaching of keys, the tester procedure will be stopped specific fault code will be stored at PCM (ECM).

NOTE: When teaching the 1st key, SMARTRA registers at the same time.

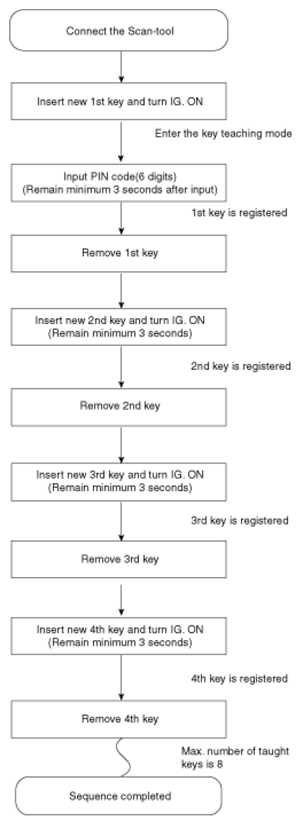

Fig 1: Key Teaching Procedure Chart
Courtesy of KIA MOTORS AMERICA, INC.
1. PCM (ECM) learnt status.

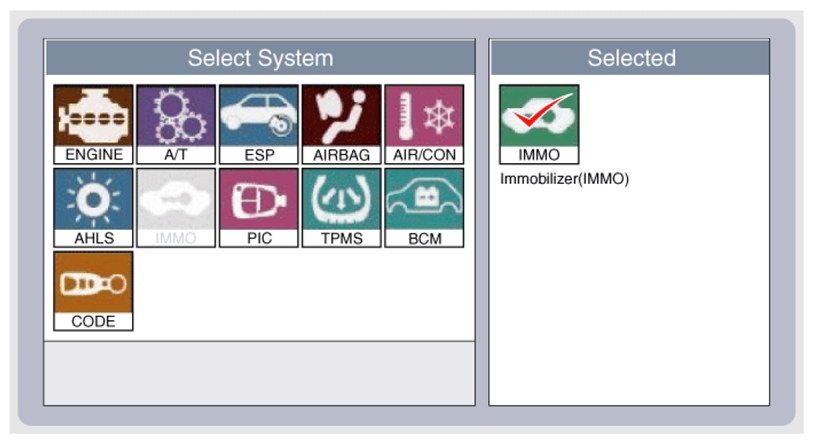

  Fig 2: Screen Display - Select IMMO
  Courtesy of KIA MOTORS AMERICA, INC.

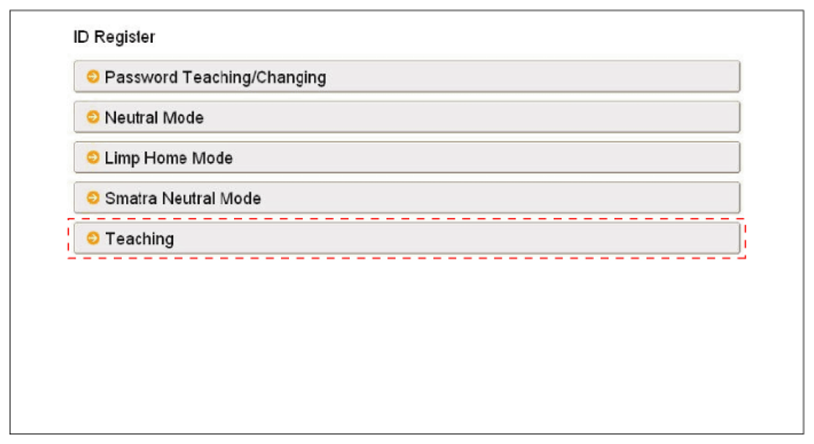

  Fig 3: Screen Display - ID Register (Teaching)
  Courtesy of KIA MOTORS AMERICA, INC.

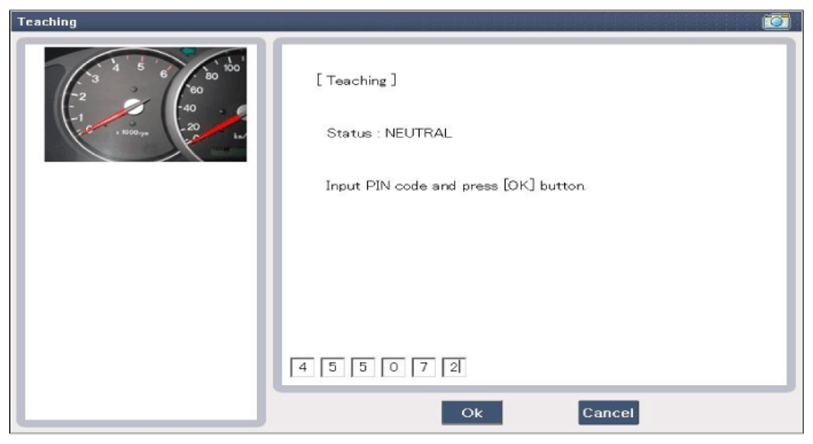

  Fig 4: Screen Display - Input Pin Code (Teaching)
  Courtesy of KIA MOTORS AMERICA, INC.

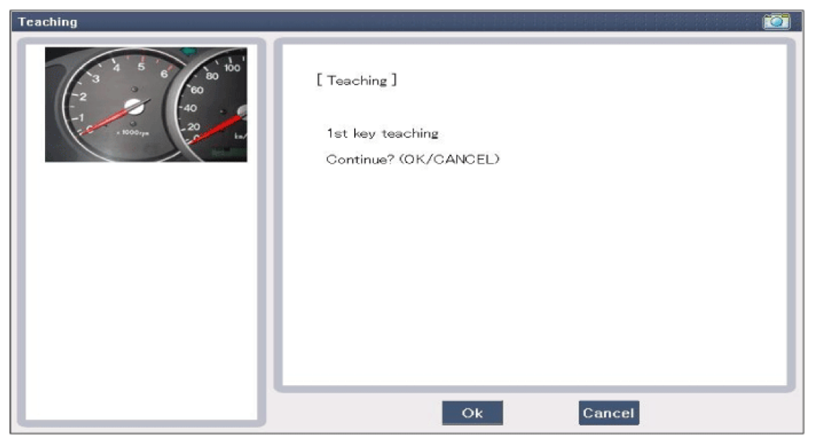

  Fig 5: Screen Display - 1st Key Teaching
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 6: Screen Display - 1st Key Teaching Completed
  Courtesy of KIA MOTORS AMERICA, INC.

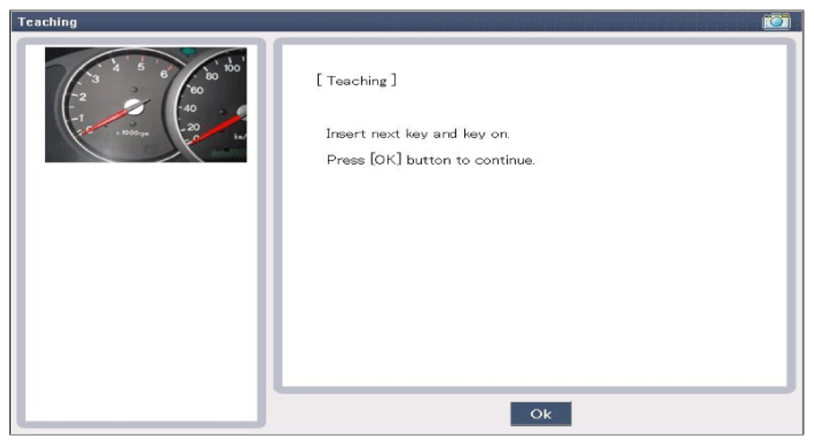

  Fig 7: Screen Display - Insert Next Key & Key On
  Courtesy of KIA MOTORS AMERICA, INC.

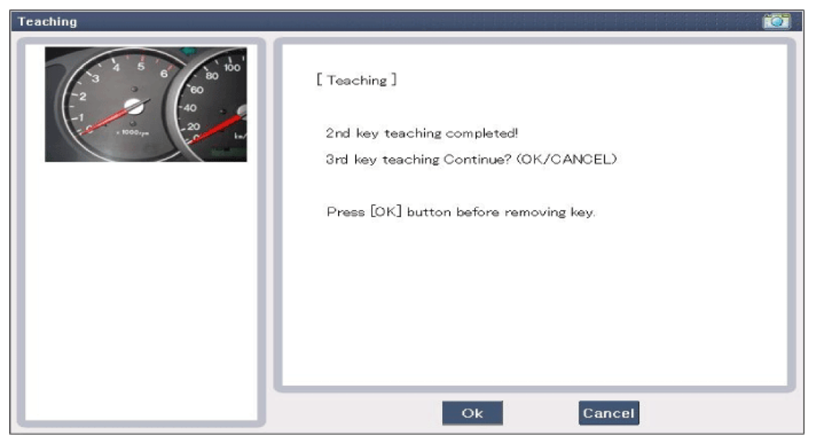

  Fig 8: Screen Display - 2nd Key Teaching Completed
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 9: Screen Display - Insert Next Key & Key On
  Courtesy of KIA MOTORS AMERICA, INC.

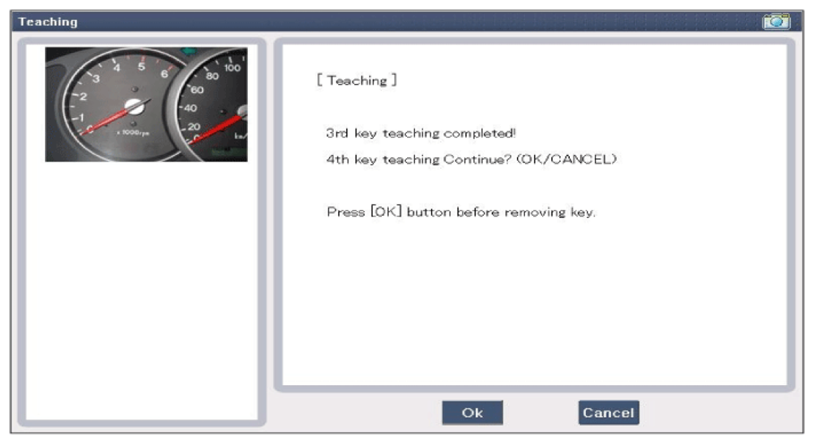

  Fig 10: Screen Display - 3rd Key Teaching Completed
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 11: Screen Display - Insert Next Key & Key On
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 12: Screen Display - 4th Key Teaching Completed
  Courtesy of KIA MOTORS AMERICA, INC.
2. PCM (ECM) virgin status.
After replacing new "PCM (ECM)" scan tool displays that PCM (ECM) is virgin status in Key Teaching mode. "VIRGIN" status means that PCM (ECM) has not matched any PIN code before.
