Armrest Replacement

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

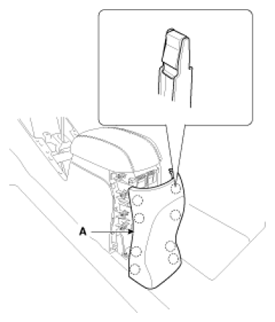

Using a screwdriver or remover, remove the rear console cover (A).

Fig 1: Identifying Rear Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the armrest cover (A).

Fig 2: Identifying Armrest Cover & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the armrest assembly (A).

Fig 3: Identifying Armrest Assembly & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
