Transfer Oil Replacement

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Transfer oil is not replaced in normal condition. But it should be replaced every 75, 000 miles in severe driving conditions.
NOTE:
Severe driving conditions
1. Driving in dusty, rough roads
2. Driving in mountains areas
3. Driving for patrol car, taxi, commercial car or vehicle towing
4. Driving over 170 Km/h
CAUTION: Transfer oil should be replaced if the transfer assembly falls into the water.

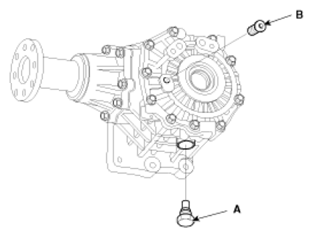

Fig 1: Identifying Oil Drain Plug & Filler Plug
Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque

Oil drain plug (A):

39.2-58.8 N.m (4.0-6.0 kgf.m, 28.9-43.4 lb-ft)

Filler plug (B):

39.2-58.8 N.m (4.0-6.0 kgf.m, 28.9-43.4 lb-ft)
