Repair Procedures: Replacement

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the right extension cover (A).
    Fig 1: Identifying Right Extension Cover
    G07425105Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the crash pad.

    Refer to "CRASH PAD ".

  4. Remove the right shower duct (A).
    Fig 2: Identifying Right Shower Duct
    G07425106Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the Intake actuator connector (A).
  6. Loosen the mounting screw and then remove the intake actuator (B).

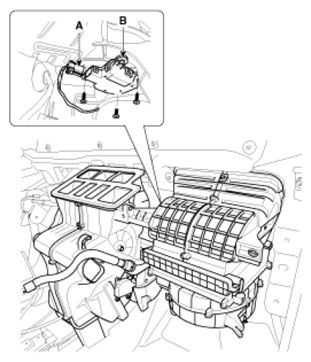

    Fig 3: Identifying Intake Actuator & Connector
    G07425107Courtesy of KIA MOTORS AMERICA, INC.
  7. Installation is the reverse order of removal.
