Antenna Status Check

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

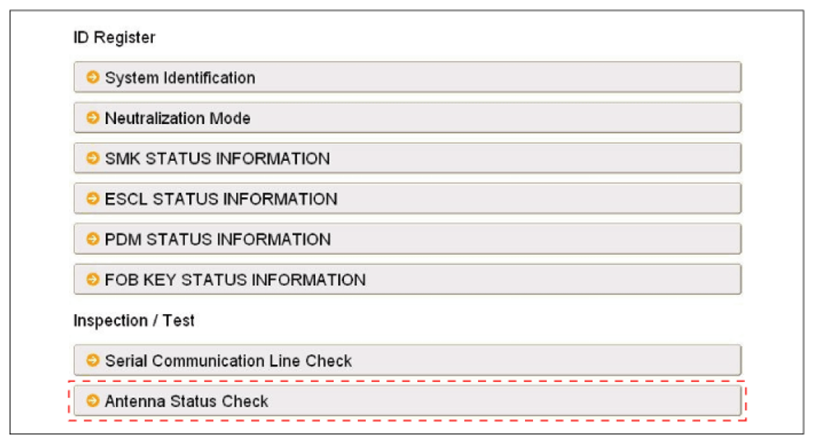

    Fig 1: Scantool Display - Selecting Antenna Status Check
    G07426707Courtesy of KIA MOTORS AMERICA, INC.
  3. After IG ON, select the "Antenna Status Check".

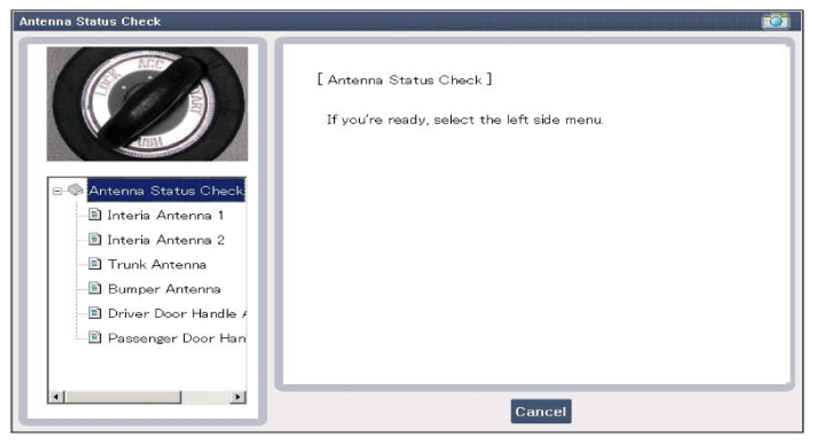

    Fig 2: Scantool Display - Antenna Status Check
    G07426708Courtesy of KIA MOTORS AMERICA, INC.
  4. Set the smart key near the related antenna and operate it with a GDS.

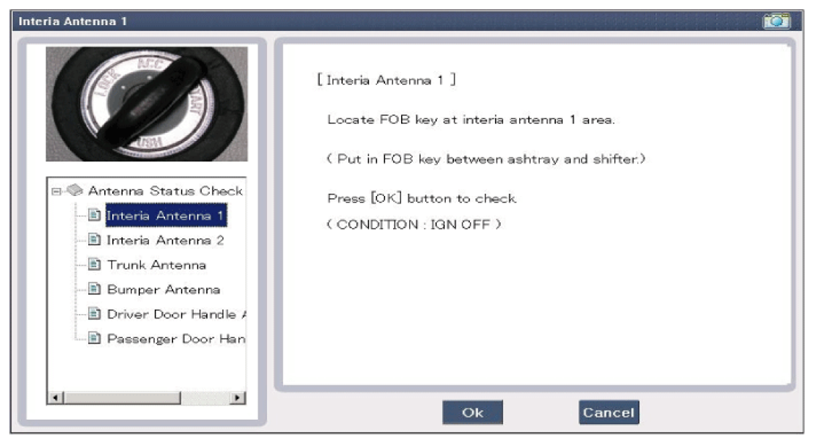

    Fig 3: Scantool Display - Interia Antenna 1
    G07426709Courtesy of KIA MOTORS AMERICA, INC.

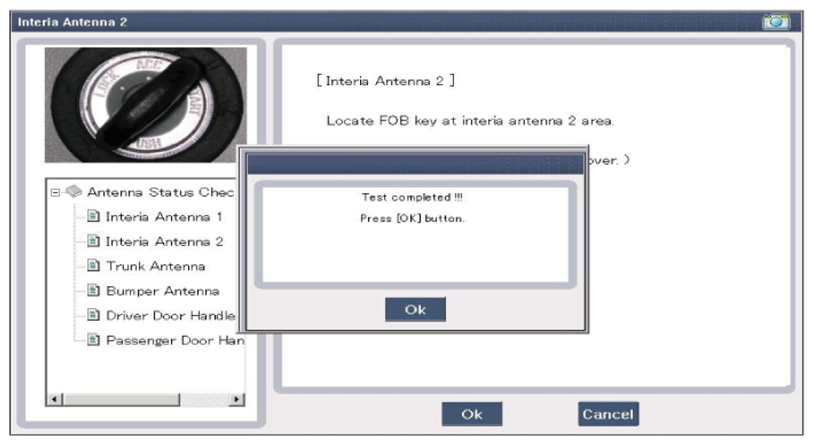

    Fig 4: Scantool Display - Interia Antenna 2 (Test Complete)
    G07426710Courtesy of KIA MOTORS AMERICA, INC.
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    1. INTERIOR Antenna 1
    2. INTERIOR Antenna 2
    3. INTERIOR Antenna 3
    4. BUMPER Antenna
    5. DRV_DR Antenna
    6. AST_DR Antenna
