Switch Diagnosis

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
Select the vehicle model and then SMART KEY system.

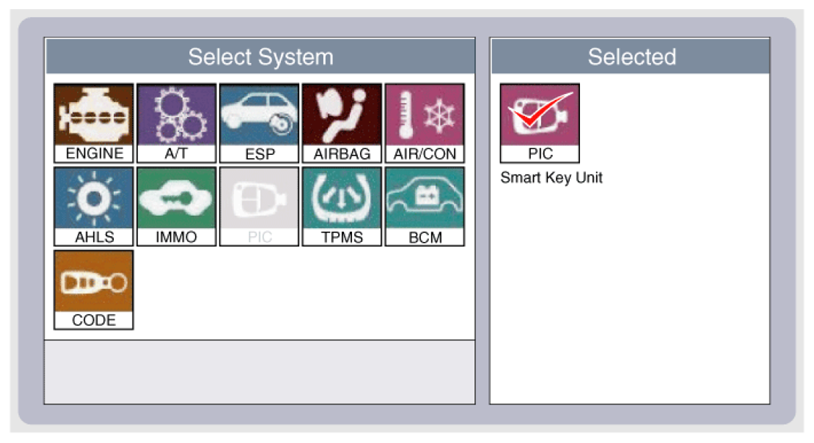

Fig 1: Scantool Display - SMART KEY System
Courtesy of KIA MOTORS AMERICA, INC.
Select the "SMART KEY unit".
After IG ON, select the "Current data".

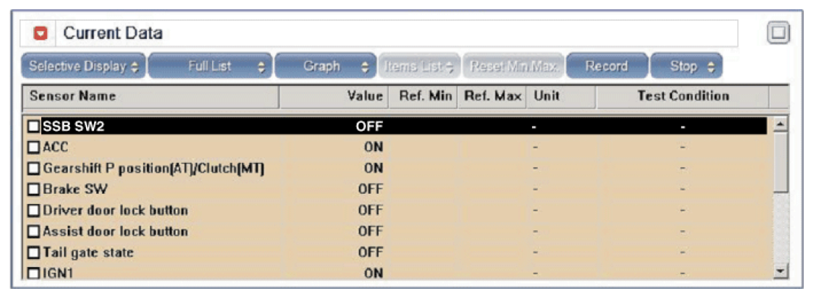

Fig 2: Scantool Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.
You can see the situation of each switch on scanner after connecting the "current data" process.

SWITCH DESCRIPTION CHART

Display	Description
FL Toggle SW	ON: Push button is ON in the driver door handle.
FR Toggle SW	ON: Push button is ON in the assist door handle.
Trunk SW	ON: Trunk button is ON.
Gear P Position	ON: Shift lever is P position.
IGN 1	ON: IGN switch is IG position.
ACC	ON: IGN switch is ACC position.
Push Knob SW	ON: Push knob switch is ON.
External Buzzer	ON: Buzzer is ON.
