Head Lamp Washer Function
WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
- In case of IGN2 ON (L_IGN2 = On) & HEAD LAMP ON (b_HeadLampLowOutput = On) status, if washer switch input (L_Washerswitch= On) is detected and keep on the state longer than "WasherSWTime", Head Lamp Washer Output is turned On (O_HeadLampWasher = On) during "Head Lamp Washer On Time". If "HeadLampWasherNumber" is bigger than 1, Head Lamp washer output repeats On and Off for "Head Lamp Washer On Time" and "Head Lamp Washer Off Time" and "HeadLampWasherNumber" times.
- When another Head Lamp Washer is requested during Head Lamp Washer activation, the second is ignored.
- After an output activation of the Head Lamp Washer, there is an inhibition time for "HeadLampWasherInhibitTime". During the inhibition time, Head Lamp washer request is ignored.
- After beginning the output, even though the precondition is not satisfied (Head Lamp Off), output does not stop. But in IGN2 off, output is stop.

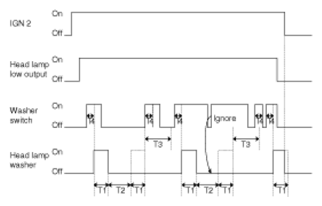

T1: Head lamp washer on time,
T2: Head lamp washer off time,
T3: Head lamp washer inhibit time,
T4: Washer SW time
VALUE SPECIFICATION CHART
| Name | Value |
|---|---|
| Head Lamp Washer Number | 1 (TBD) |
| Head Lamp Washer On Time | 1.2 ± 0.1 sec (TBD) |
| Head Lamp Washer Off Time | 1.2 ± 0.1 sec (TBD) |
| Washer SW Time | 0 sec |
| Head Lamp Washer Inhibit Time | 5 sec |
