Rear Wiper Washer Control
WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

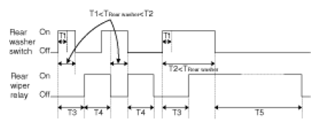

- In case of IGN2 On (L_IGN2 = ON), if user turns on the Rear Washer Switch (L_RearWasherswitch= On) more than a given time, then Wiper output shall be driven depending on Rear Wiper mode.
T1: Rear wiper washer mode on time,
T2: Rear wiper mist mode time,
T3: Rear wiper washer out delay time,
T4: Rear wiper one time,
T5: Rear wiper washer mode time
VALUE SPECIFICATION CHART
| Value Name | Values |
|---|---|
| Rear Wiper Washer Mode On Time | 0.2 sec ± 20 msec |
| Rear Wiper Mist Mode Time | 0.6 sec ±100 msec |
| Rear Wiper Washer Out Delay Time | 0.3 sec ± 100 msec |
| Rear Wiper One Time | 0.7 sec ± 70 msec |
| Rear Wiper Washer Mode Time | 3 sec ± 0.3 sec |
- Rear Washer Wiping During Rear Wiper Intermittent Control
During Rear Wiper Intermittent Control, If Rear Washer Switch is turned on, BCM stops the Intermittent Control and enter Rear Wiper Washer Control Mode and then after Rear Wiper Washer Control finish, return the Rear Wiper Intermittent Control.
