Interior Room Lamp

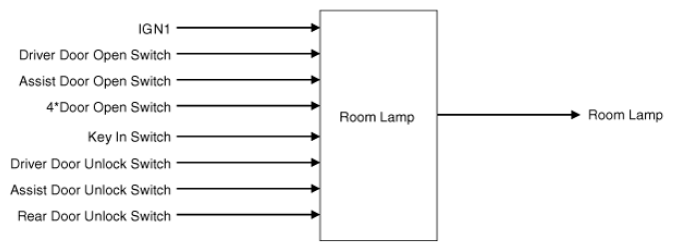

- Interrior Room Lamp Data Flow
- Decayed Room Lamp & Keyless Unlock Timer
When removing or installing the Battery
- Start Room Lamp on the state of 20min, if the DOOR is OPENED.
- Start Room Lamp when it is OFF if the DOOR is CLOSED.
- Room Lamp Off
- Condition 1
State Description Initial condition Room Lamp OFF and DOOR CLOSE Event UNLOCK by TX(Transmitter) or key In ON → OFF Action Room Lamp ON for 30± 3 sec. - Condition 2
State Description Initial condition Room Lamp OFF Event Any DOOR OPEN for over 0.1 sec. when ALL DOORS are closed Action ROOM LAMP ON for 20 min - Condition 3
State Description Initial condition Room Lamp OFF and IGN1 OFF Event IGN1 ON and DOOR OPEN for over 0.1 sec. Action ROOM LAMP ON Courtesy of KIA MOTORS AMERICA, INC.

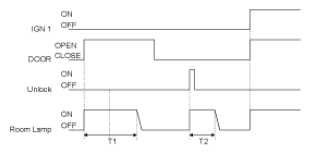

T1: 20 ± 1min, T2: 30 ± 3sec
- Condition 1
- Room Lamp On for 30s
- Condition 1
State Description Initial condition ROOM LAMP ON for 30s and IGN1 OFF Event DOOR OPEN for over 0.1 sec. when ALL DOORS are closed. Action ROOM LAMP ON for 20min - Condition 2
State Description Initial condition ROOM LAMP ON for 30s and IGN1 OFF Event UNLOCK by TX Action ROOM LAMP ON for 30s - Condition 3
State Description Initial condition ROOM LAMP ON for 30s and IGN1 OFF Event IGN1=ON, or after 30sec, or ALL DOOR UNLOCK → LOCKED or TX LOCK & ALL DOORS CLOSED & ALL DOOR LOCKED Action The state go to ROOM LAMP DECAYING state
Room Lamp decaying for 2 ± 0.2 sec and OFFCourtesy of KIA MOTORS AMERICA, INC.

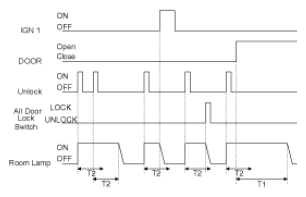

T1: 20 ± 1min, T2: 30 ± 3sec
- Condition 1
- Room Lamp On for 20min
- Condition 1
State Description Initial condition Room Lamp ON for 20min and IGN1 OFF Event IGN1 ON Action ROOM LAMP ON - Condition 2
State Description Initial condition Room Lamp ON for 20min and IGN1 OFF Event DOOR CLOSE and ALL DOOR LOCK
Or after 20minAction ROOM LAMP DECAYING for 2 ± 0.2 sec and OFF - Condition 3
State Description Initial condition ROOM LAMP ON for 20min and IGN1 OFF Event DOOR CLOSE Action ROOM LAMP ON for 30s Courtesy of KIA MOTORS AMERICA, INC.

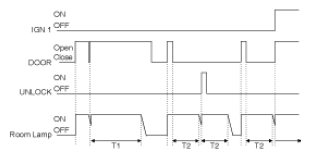

T1: 20 ± 1min, T2: 30 ± 3sec
- Condition 1
- Room Lamp Decaying
- Condition 1
State Description Initial condition ROOM LAMP DECAYING and IGN1 OFF Event DOOR OPEN for over 0.1 sec. when All doors are closed Action ROOM LAMP ON for 20min - Condition 2
State Description Initial condition ROOM LAMP DECAYING and IGN1 OFF and DOOR CLOSE Event UNLOCK by TX Action ROOM LAMP ON for 30s - Condition 3
State Description Initial condition ROOM LAMP DECAYING Event After decaying Action ROOM LAMP OFF - Condition 4
State Description Initial condition ROOM LAMP DECAYING Event IGN1 ON and DOOR OPEN for 0.1 sec. Action ROOM LAMP ON Courtesy of KIA MOTORS AMERICA, INC.

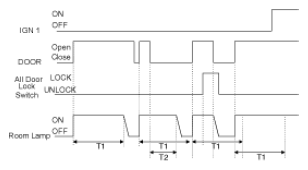

T1: 20 ± 1min, T2: 30 ± 3sec.
- Condition 1
- Room Lamp On
- Condition 1
State Description Initial condition Room Lamp ON and IGN1 ON and DOOR OPEN Event DOOR CLOSE Action ROOM LAMP DECAYING for 2 ± 0.2 sec. and OFF - Condition 2
State Description Initial condition Room Lamp ON and IGN1 ON and DOOR OPEN Event IGN1 OFF Action ROOM LAMP ON for 20min - Condition 3
State Description Initial condition Room Lamp ON and IGN1 ON and DOOR OPEN Event DOOR CLOSE and IGN1 OFF Action ROOM LAMP ON for 30s Courtesy of KIA MOTORS AMERICA, INC.

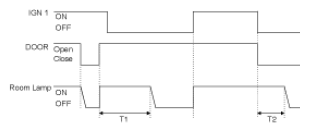

T1: 20 ± 1min, T2: 30 ±3sec
NOTE:- ROOM LAMP should not be flickered when turning IGN1 ON.
- Exposure for the ROOM LAMP should be more than 32 steps.
- Condition 1
- Buzzer Control

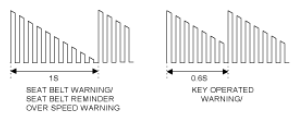

- SPECIFICATION of BUZZER SOUND
Frequency Frequency DUTY Cycle Sound pressure Remark SEAT BELT WARNING/SEAT BELT REMINDER OVER SPEED WARNING 800Hz 50% 1.0s 70±10dB Decreasing sound KEY OPERATED WARNING 800Hz 50% 0.6s 70±10dB Decreasing sound - Priority:
S/BELT WARNING/SEAT BELT REMINDER > OVER SPEED WARNING > KEY OPERATED WARNING
- Keep the output up to the OFF cycle when turning the output OFF.
- Measurement distance for sound pressure: 1.0 m
- SPECIFICATION of BUZZER SOUND
