Section 65 (Smart Key System)
>>
Smart Key Unit
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram
WARNING:
This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

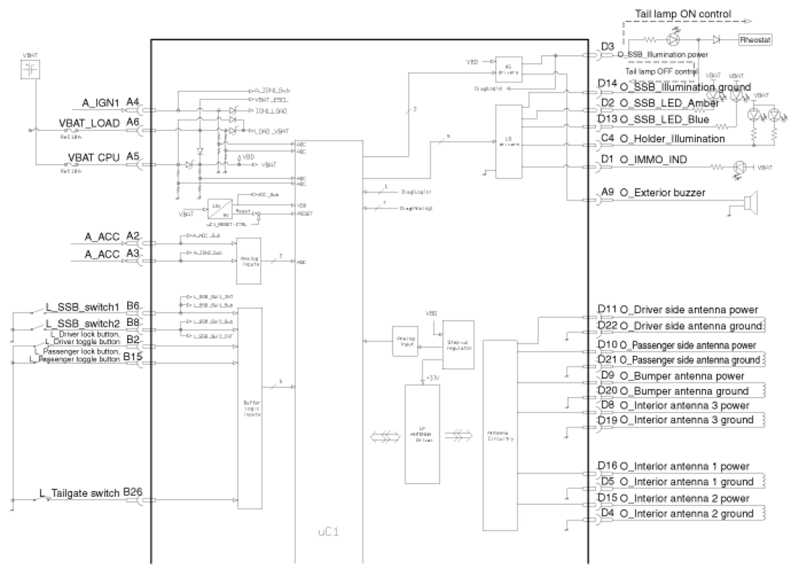

Fig 1: Smart Key Unit Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

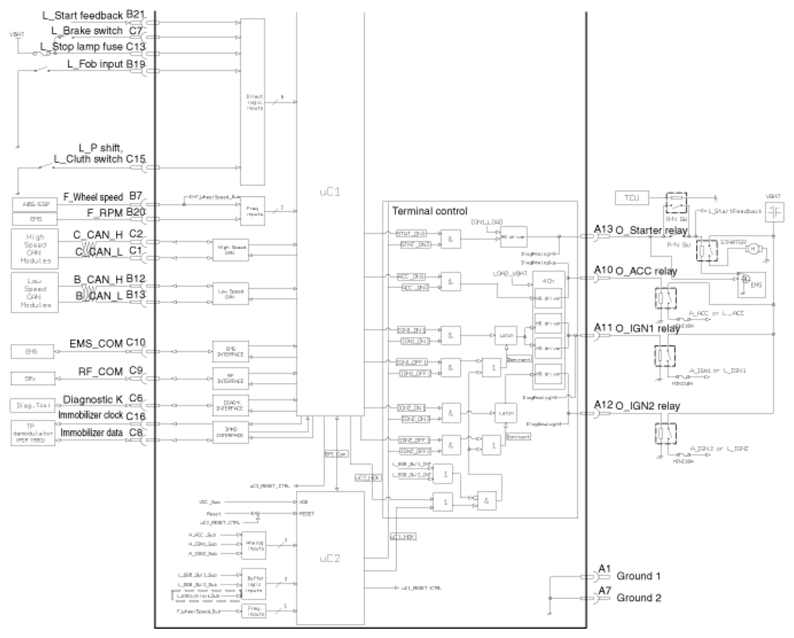

Fig 2: Smart Key Unit Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
