Repair Procedures: Replacement

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the crash pad left side cover (A).

Fig 1: Identifying Crash Pad Left Side Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the left extension cover (A).

Fig 2: Identifying Left Extension Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad lower cover (A).

Fig 3: Identifying Crash Pad Lower Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the diagnosis connector (A).

Fig 4: Identifying Diagnosis Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the reinforcing panel (A).

Fig 5: Identifying Reinforcing Panel
Courtesy of KIA MOTORS AMERICA, INC.
Remove the left shower duct (A).

Fig 6: Identifying Left Shower Duct
Courtesy of KIA MOTORS AMERICA, INC.
Remove the BCM.
Refer to REMOVAL .

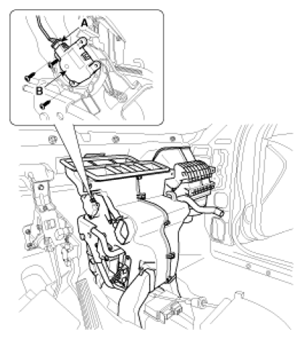

Disconnect the mode control actuator connector (A).
Loosen the mounting screw and then remove the mode control actuator (B).

Fig 7: Identifying Mode Control Actuator & Connector
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse order of removal.
