Repair Procedures: Replacement

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the left extension cover (A).

Fig 1: Identifying Left Extension Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the left shower duct (A).

Fig 2: Identifying Left Shower Duct
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the temperature control actuator connector (A).
Loosen the mounting screw and then remove the temperature control actuator (B).

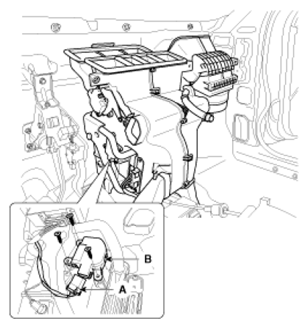

Fig 3: Identifying Temperature Control Actuator & Connector (Driver)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the right extension cover (A).

Fig 4: Identifying Right Extension Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the main crash pad.
Refer to "CRASH PAD "
Remove the right shower duct (A).

Fig 5: Identifying Right Shower Duct
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the temperature control actuator connector (A).
Loosen the mounting screw and then remove the temperature control actuator (B).

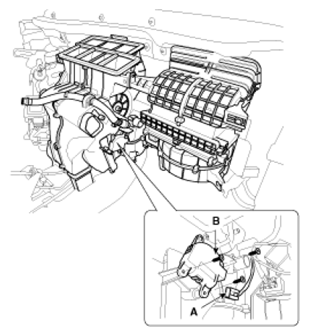

Fig 6: Identifying Temperature Control Actuator & Connector (Passenger)
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse order of removal.
