Repair procedures: Installation: Notes

Install in the reverse order of removal.

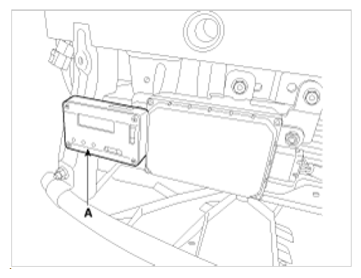

NOTE: Ensure that the side surface of the smart cruise control (SCC) unit is perpendicular to the level ground using the SST 0K964-3T000 (A).

Fig 1: Installing Smart Cruise Control Unit
Courtesy of KIA MOTORS AMERICA, INC.

Smart cruise control unit installation bolt/nut:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
Perform the smart cruise control radar sensor alignment procedure.
(Refer to Smart Cruise Control (SCC) Radar Sensor Alignment )
Install the front bumper.
(Refer to "FRONT BUMPER ")
