Console Armrest Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the floor console assembly.

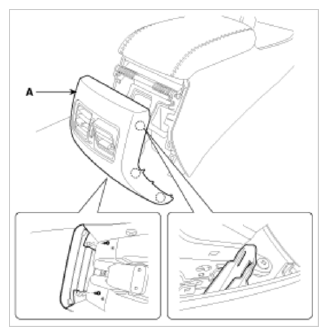

After loosening the mounting screws, then remove the rear console cover (A).

Fig 1: Identifying Rear Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the console armrest (A).

Fig 2: Identifying Console Armrest
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
