Components and Components Location: Components

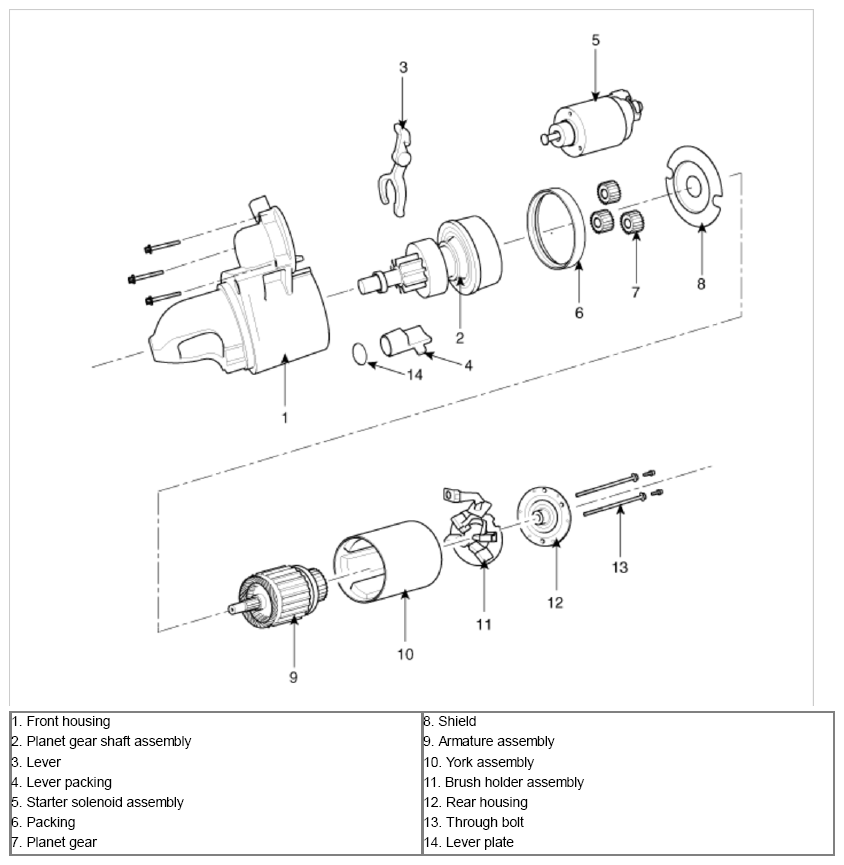

Fig 1: Identifying Starting System Components
G09751095Courtesy of KIA MOTORS AMERICA, INC.
