Components and Components Location: Components

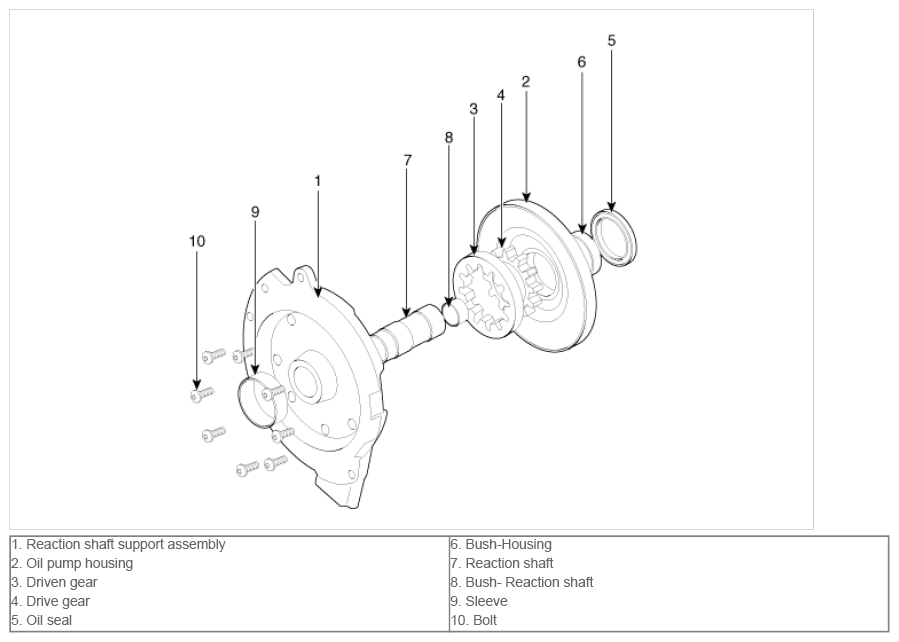

Fig 1: Identifying Oil Pump Related Components

G09751482

Courtesy of KIA MOTORS AMERICA, INC.
