RF Receiver

NOTE:

Disconnect the negative(-) battery terminal.
Remove the rear seat.
(Refer to "REAR SEAT ")
Remove the rear package tray.
(Refer to PACKAGE TRAY TRIM REPLACEMENT

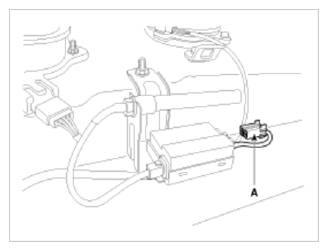

Disconnect the RF receiver connector (A).

Fig 1: Identifying RF Receiver Connector
Courtesy of KIA MOTORS AMERICA, INC.

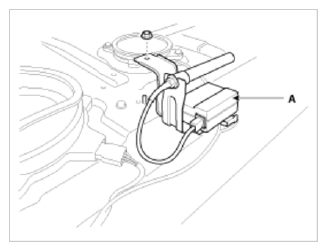

Remove the RF receive (A) after loosening the nut (1EA).

Fig 2: Identifying RF Receive
Courtesy of KIA MOTORS AMERICA, INC.
