Repair procedures: Replacement

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

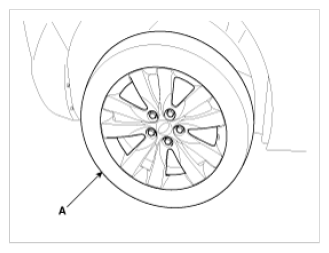

Fig 1: Front Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
Loosen the bolt & nut and then remove the lower arm (A).
Tightening torque:

78.5 ~ 88.3N.m (8.0 ~ 9.0kgf.m, 57.9 ~ 65.1lb-ft)

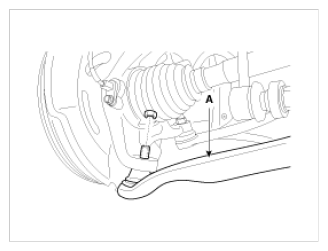

Fig 2: Lower Arm
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolts and nuts and then remove the front lower arm (A).
Tightening torque

98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

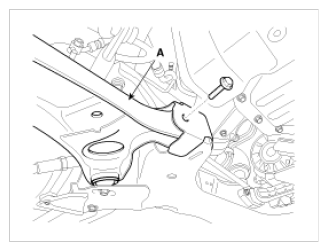

Fig 3: Lower Arm & Mounting Bolt (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque

156.9 ~ 176.5N.m (16.0 ~ 18.0kgf.m, 115.7 ~ 130.2lb-ft)

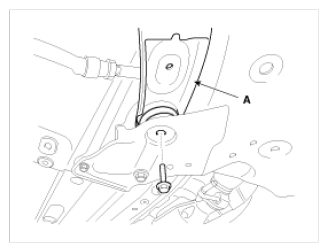

Fig 4: Lower Arm & Mounting Bolt (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
Check the front alignment.
(Refer to "FRONT ALIGNMENT ")
