Tech Tip: System Setting DTC P0461A (TT062)

Publication date: 2014-04-01
Reference number: TT062

TECH TIP: SYSTEM SETTING DTC P0461A

TECHNICAL SERVICE BULLETIN

Reference Number(s): TT062, Date of Issue: 04/01/2014

KIA:	2014 Forte (YD)

SYMPTOM

System setting DTC P0461 Fuel Level Sensor "A" Circuit Range Performance.

REPAIR

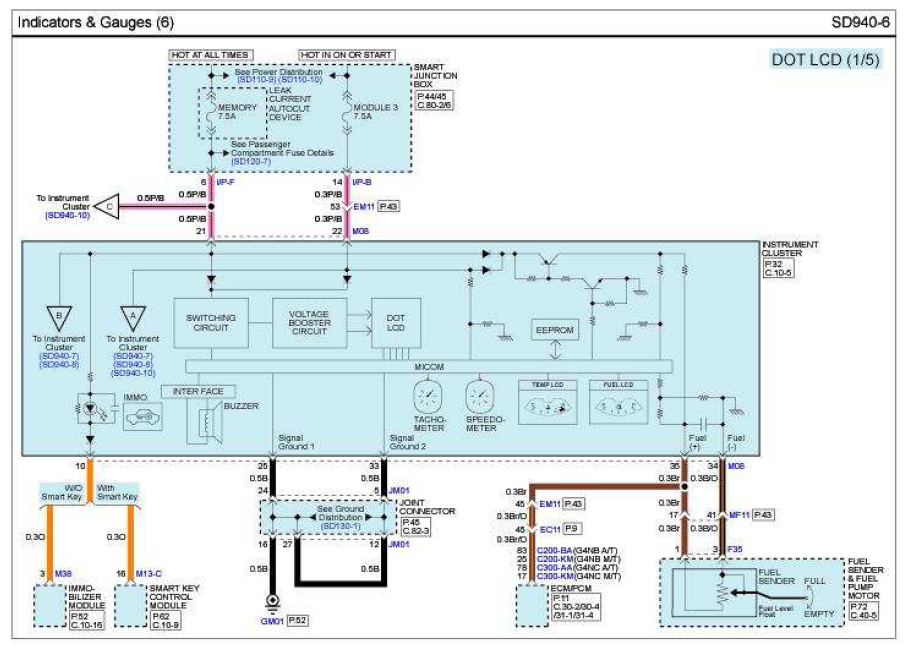

First, check the fuel sender connector to make sure it is fully seated. Then, check for backed out pins in connectors EM11, EC11, MF11 (see diagram). Also, inspect the PCM & Cluster connections. If OK, perform DTC troubleshooting per KGIS.

NOTE: Tech Tips are not a substitute for proper diagnosis.
