Navigation Unit Part Number And SD Card Compatibility (GEN065)

Publication date: 2014-08-06
Reference number: GEN065

NAVIGATION UNIT PART NUMBER AND SD CARD COMPATIBILITY

TECHNICAL SERVICE BULLETIN

Reference Number(s): GEN065, Date of Issue: August 6, 2014

KIA:	2014 Forte (YD), Sorento (XMa), Cadenza (VG)
GROUP:	General

SERVICE INFORMATION

This bulletin provides information regarding navigation unit part numbers, and compatible SD Card part numbers, for some Cadenza (VG), Sorento (XMa) and Forte (YD) vehicles (see production dates in the table below). SD Card part numbers are matched and only compatible with particular head unit part numbers. Due to an error in the transition period from one matched set to the next, compatibility requires special attention for the limited production ranges identified below. Refer to the information outlined in this TSB for diagnosing and ordering parts to resolve SD Card/Navigation unit related issues.

NOTE: Before replacing the navigation unit, make sure to check the navigation unit part number for the applicable vehicle production range. If the navigation unit is within the affected production range, order a suitable navigation unit for the original SD Card, as the SD Card will be reused.

Model

Production Range

Original Navigation Head Unit P/N

Original SD Card P/N

New Navigation Head Unit P/N⁽¹⁾

Forte (YD)

Oct. 21 ~ Nov. 12, 2013

96560 A7100WK

96554 A7110

96560 A7100WKFFF

Sorento (XMa)

Oct. 17 ~ Nov. 13, 2013

96560 1UAA0VA

96554 1UAA1

96560 1UAA0VAFFF

Cadenza (VG)

Jul. 11 ~ Nov. 21, 2013

96560 3R105

96554 3R106

96560 3R105FFF

⁽¹⁾	See additional ordering information on Page 2.

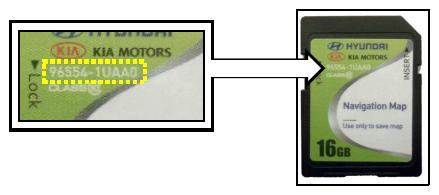

NOTE: Locate the SD Card part number by referring to the image below.

File Under: General

CADENZA (VG) NAVIGATION UNIT VERSION

Previous Navigation Unit P/N	SD Card	New Navigation Unit P/N
96560-3R105	96554-3R105 (For 2012 year map)	96560-3R105
96560-3R105	96554-3R106 (For 2013 year map)	96560-3R105FFF

NOTE:

Before ordering a new navigation unit from the table above, carefully check the vehicle production date and the navigation unit and SD card P/N. As an example, if the previous navigation unit P/N is 96560-3R105 and the SD card is 96554-3R106, be sure to order 96560-3R105FFF as a new navigation unit. Follow the same rules for all other models.
Always order remanufactured navigation units for retailed vehicles and new navigation units only for non-retailed vehicles.

For a complete list of SD Card part numbers (including navigation software and map version) by model, access the link below:

http://www.kia-gpsmap.us/sdmatrix
