Components And Components Location: Components

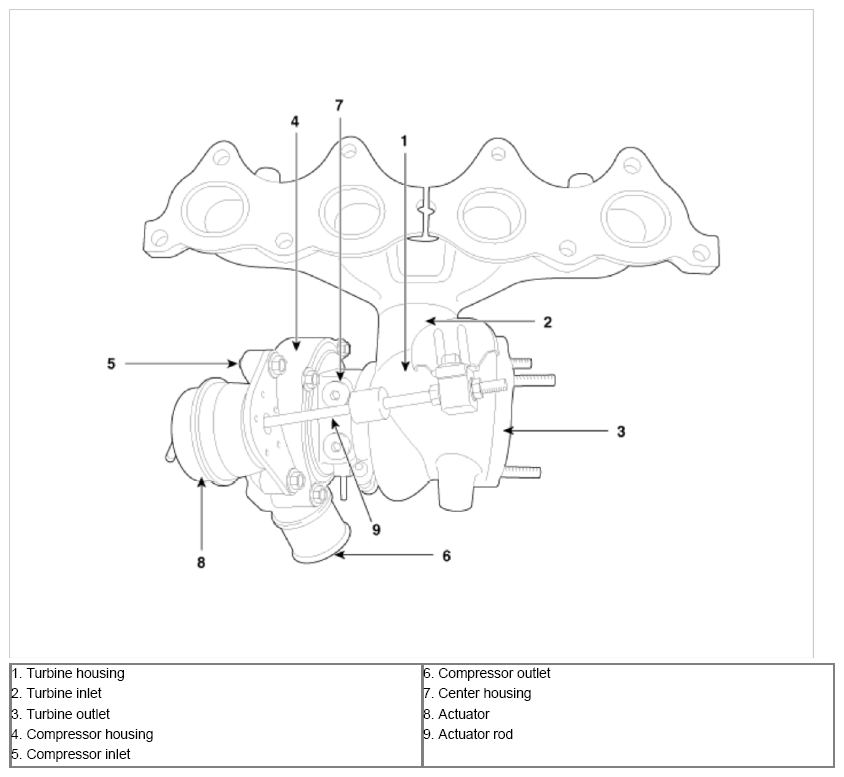

Fig 1: Identifying Turbo Charger Components
G09746788Courtesy of KIA MOTORS AMERICA, INC.
