Back View Camera

Disconnect the negative (-) battery terminal.
Open the trunk and remove the trunk lid trim.
(Refer to "TRUNK LID TRIM ")

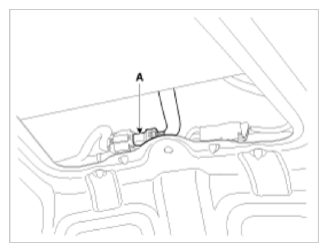

Disconnect the rear view camera connector (A).
[2 Door]

Fig 1: Rear View Camera Connector (2 Door)
Courtesy of KIA MOTORS AMERICA, INC.

[4 Door]

Fig 2: Rear View Camera Connector (4 Door)
Courtesy of KIA MOTORS AMERICA, INC.

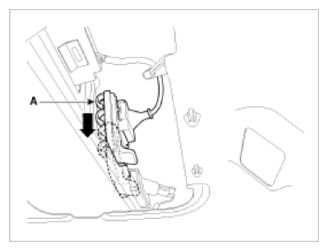

Pull down and remove the rear view camera holder (A).

Fig 3: Rear View Camera Holder
Courtesy of KIA MOTORS AMERICA, INC.

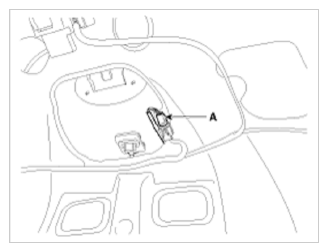

Remove the rear view camera (A).

Fig 4: Rear View Camera
Courtesy of KIA MOTORS AMERICA, INC.
