Repair Procedures: Replacement

WARNING: This page is about a different car, the 2013 Hyundai Tucson and 2012 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right extension cover (A).

Fig 1: Identifying Right Extension Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the damper (A) from the glove box (B).

Fig 2: Identifying Glove Box With Damper
Courtesy of HYUNDAI MOTOR CO.
Remove the glove box lift (C).

Fig 3: Identifying Glove Box Lift
Courtesy of HYUNDAI MOTOR CO.
Disconnect the pine, then remove the glove box (A).

Fig 4: Identifying Glove Box
Courtesy of HYUNDAI MOTOR CO.
Remove the crash pad passenger panel (A).

Fig 5: Identifying Crash Pad Passenger Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the glove box housing (A).

Fig 6: Identifying Glove Box Housing
Courtesy of HYUNDAI MOTOR CO.
Remove the shower duct (A).

Fig 7: Identifying Shower Duct
Courtesy of HYUNDAI MOTOR CO.
Disconnect the Intake actuator connector (A).
Loosen the mounting screw and then remove the intake actuator (B).

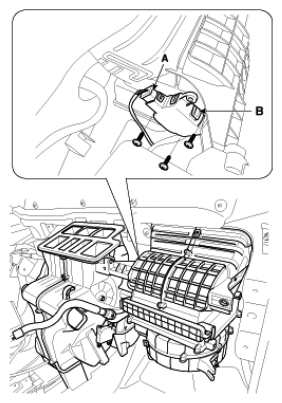

Fig 8: Identifying Intake Actuator Connector And Intake Actuator
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse order of removal.
