Virtual Ground Output Circuit Inspection

Check Open Or Short In Signal Circuit
1. IG KEY "OFF".
2. Disconnect HO2S (S1) connector.
3. IG KEY "ON" & ENG "OFF".
4. Measure the voltage between Virtual Ground Output terminal of HO2S (S1) harness connector and chassis ground.
  Specification: Approx 2.5V

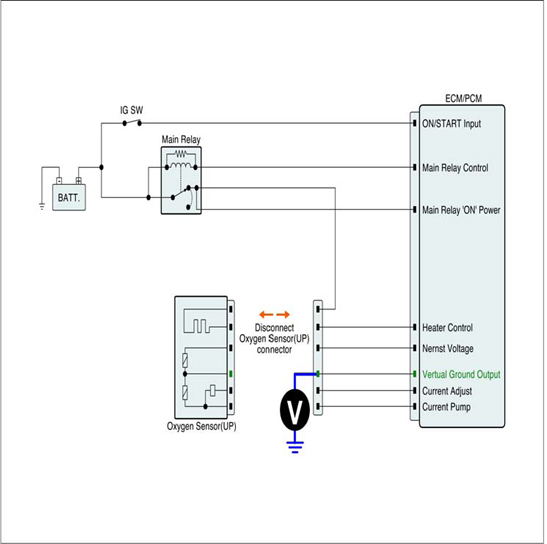

  Fig 1: Measuring Voltage Between Virtual Ground Output Terminal Of HO2S (S1) Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.

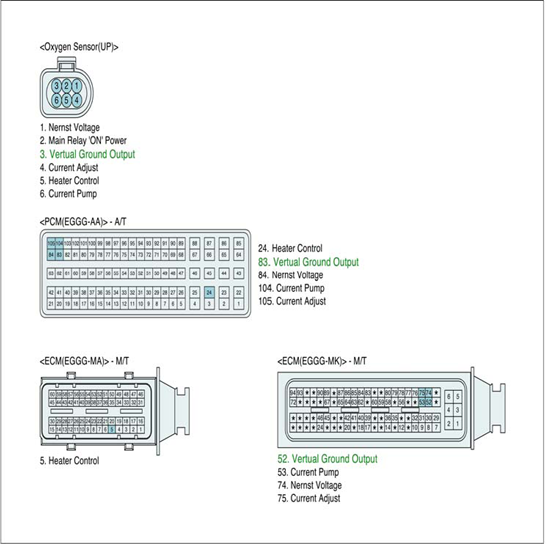

  Fig 2: Identifying Oxygen Sensor Connector Terminals
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specification?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Repair Open or Short circuit and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
