Timing Chain: Components

Fig 1: Timing System Replacement Components With Torque Specifications (1 Of 2)
G07395507Courtesy of KIA MOTORS AMERICA, INC.

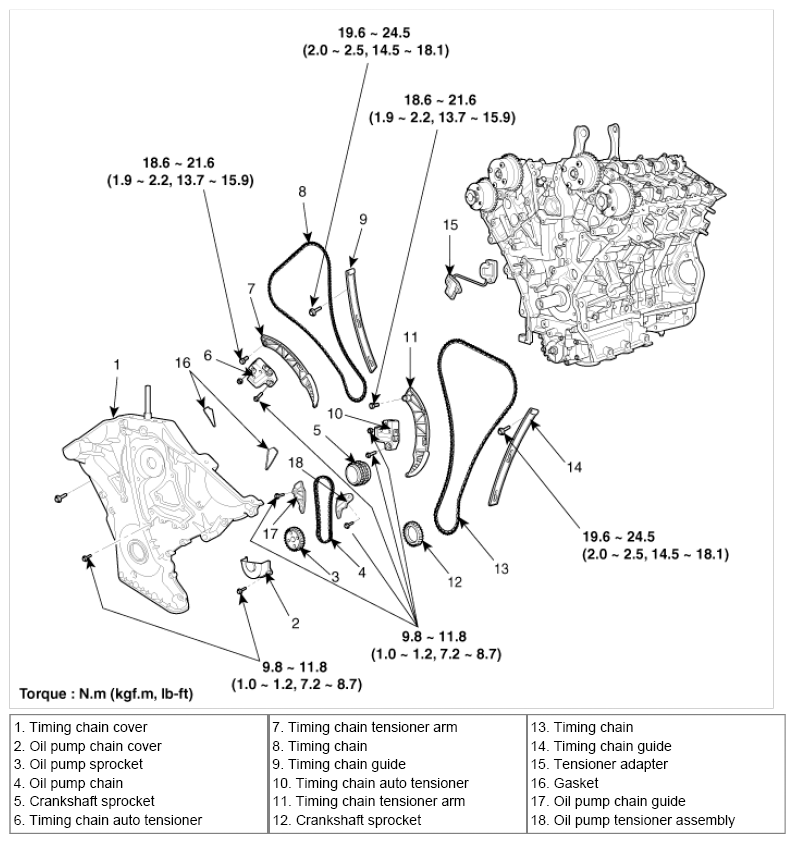

Fig 2: Timing System Replacement Components With Torque Specifications (2 Of 2)
G07395508Courtesy of KIA MOTORS AMERICA, INC.
