Sunvisor Replacement

  1. Remove the sunvisor cover (A).
  2. After loosening the mounting screws, then remove the sunvisor (B) and retainer (C).

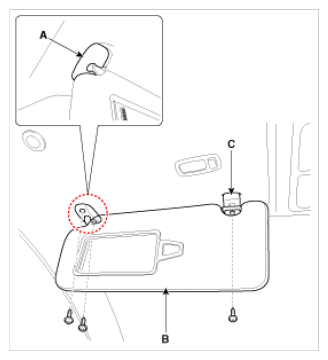

    Fig 1: Identifying Sunvisor, Cover And Retainer
    G09766540Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
