Repair Procedures: Removal

  1. Remove the tailgate trim.

    (Refer to TAIL GATE TRIM )

  2. Remove the tailgate back panel.

    (Refer to TAIL GATE BACK PANEL )

  3. Remove the back view camera (A) after loosening the mounting screws.

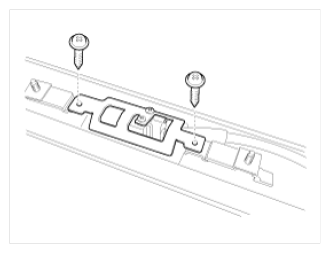

    Fig 1: Back View Camera Mounting Screws
    G09782387Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Back View Camera
    G09782388Courtesy of KIA MOTORS AMERICA, INC.
