Monitor GDS Data

Check PCM communication
1. Ignition "ON" & Engine "OFF"
2. Connect GDS and setup the oscilloscope.
3. Back probe and measure signal waveform of Pin No. 61 (EMS COM) terminal of PCM main harness connector and chassis ground by using VMI A channel. (AT)
4. Back probe and measure signal waveform of Pin No. 83 (EMS COM) terminal of PCM main harness connector and chassis ground by using VMI A channel. (MT)
  Specification: Refer to Fig 1 below

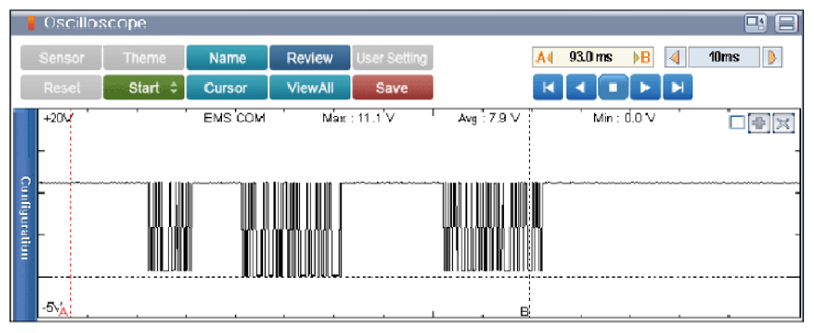

  Fig 1: Communication Signal Waveform Between SMK Unit And ECM/PCM
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured signal waveform normal?
  YES
  - Fault is intermittent caused by poor contact in Smart Key unit and/or PCM's connector or was repaired and Smart Key unit and memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
  NO
  - Go to "SMK Status Information" procedure.
SMK Status Information
1. Ignition "ON" & Engine "OFF"
2. Erase DTC after connecting GDS.
3. Check Smart key status in "Vehicle S/W management", if DTC is retrieved.

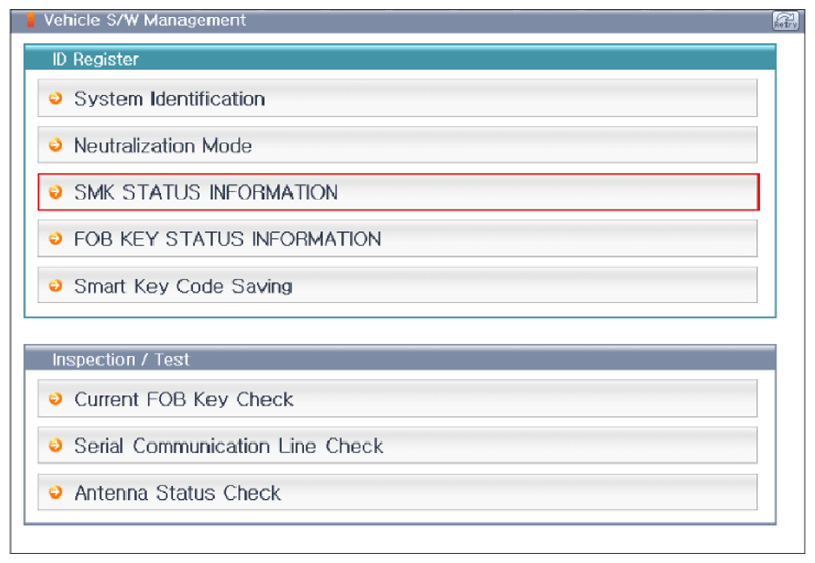

  Fig 2: Selecting SMK Status Information Screen
  Courtesy of KIA MOTORS AMERICA, INC.

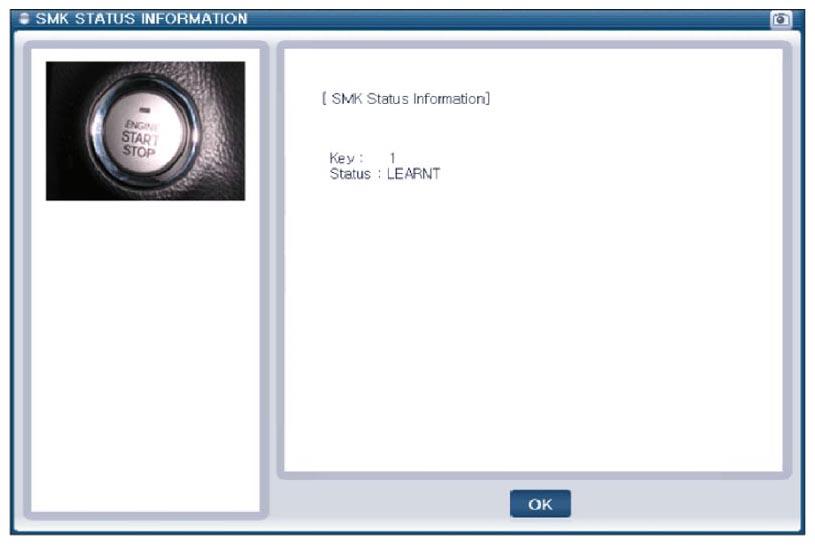

  Fig 3: Number Of Registered Key And Learning Status
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the Smart key unit learnt status?
  YES
  - Fault is intermittent caused by poor contact in Smart Key unit and/or PCM's connector or was repaired and Smart Key unit and memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
  NO
  - Go to "WIRING INSPECTION " procedure.
