Repair procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Install in the reverse order of removal.
- Tighten the nut with the specified torque.
Tightening torque:
2.0 ~ 4.0 N.m (0.2 ~ 0.4 kgf.m, 1.4 ~ 2.9 lb-ft)

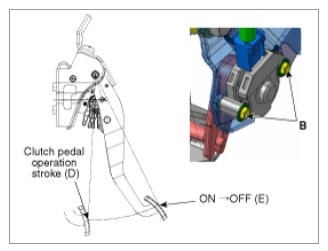

NOTE: After pressing the clutch pedal operation stroke to the position (D), turn the ignition lock switch lever to ON->OFF position (E) and then tighten the bolts (B) with specified torque.
Clutch pedal operation stroke (D)
Gasoline 1.6: 145 ± 3 mm (5.7087 ± 0.1181 in.)
Gasoline 2.0: 150 ± 3 mm (5.9055 ± 0.1181 in.)
Ignition lock switch ON->OFF position (E)
Gasoline 1.6: 72.5 ± 3 mm (2.8543 ± 0.1181 in.)
Gasoline 2.0: 75.0 ± 3 mm (2.9528 ± 0.1181 in.) - Tighten the nut with the specified torque.
