Airbag Control Unit (ACU) Software Logic Improvement (SC229) (SC229)

Publication date: 2022-03-31
Reference number: SC229

AIRBAG CONTROL UNIT (ACU) SOFTWARE LOGIC IMPROVEMENT (SC229)

SERVICE CAMPAIGN BULLETIN

Reference Number(s): SC229, Date of Issue: March 31, 2022

KIA:	2014MY Soul (PS)
GROUP:	Safety Recall Campaign

SERVICE INFORMATION

This bulletin provides information to update the Airbag Control Unit (ACU) software logic on 2014MY Soul (PS) produced from July 21, 2013 through June 20, 2014. In the rare event that communication to the ACU from both the left and right front impact sensors is simultaneously lost early in a severe crash, before frontal airbag deployment is commended by the ACU, the front airbags will not deploy. Non-deployment of the frontal airbags increases the risk of injury.

Follow the procedure outlined in this publication to update the ACU software logic. Before conducting the procedure, verify that the vehicle is included in the list of affected VINs.

NOTE: There is no charge to the vehicle owner for this repair. Under applicable law, you may not sell or otherwise deliver any affected vehicle until it has been repaired pursuant to the procedures set forth in this bulletin.

NOTE: To assure complete customer satisfaction, always remember to refer to WebDCS Warranty Coverage (validation) Inquiry Screen (Service → Warranty Coverage → Warranty Coverage Inquiry) for a list of any additional campaigns that may need to be performed on the vehicle before returning it to the customer.

A printed copy is for reference only; publication information can be updated at any time. Always refer to KGiS for the latest information. After logging in kdealer.com, the newest technical publications are listed in 'Service Releases' and has the latest service information that has been released.

ECU UPGRADE PROCEDURE

To correct this condition, the ECU should be reprogrammed using the KDS download, as described in this bulletin.

Upgrade Event Name
606. PS ACU OPERATION LOGIC IMPROVEMENT

NOTE:

Confirm a fully charged battery (12.3 volts or higher is necessary) is used or utilize a fully charged jump starter box connected to the battery.
Ensure the KDS GDS is sufficiently charged at 60% or higher prior to reflash .
All ECU upgrades must be performed with the ignition set to the 'ON' position unless otherwise stated.
Damaged VCIII units should not be used and promptly replaced .
Be careful not to disconnect the VCI-II connected to the vehicle during the ECU upgrade procedure.
DO NOT start the engine during ECU upgrade.
DO NOT turn the ignition key 'OFF' or interrupt the power supply during ECU upgrade.
When the ECU upgrade is completed, turn the ignition 'OFF' and wait 10 seconds before starting the engine.
ONLY use approved ECU upgrade software designated for the correct application.

IMPORTANT: It is recommended to ALWAYS check the Electronic Parts Catalog (EPC) to locate the ECU Part Number respective to Auto/Manual Mode ROM IDs. DO NOT reference the parts label affixed to the ECU.

NOTE: Before attempting an ECU upgrade on any Kia model, make sure to first determine whether the applicable model is equipped with an immobilizer security system. Failure to follow proper procedures may cause the PCM to become inoperative after the upgrade and any claims associated with this repair may be subject to chargeback.

ROM ID INFORMATION TABLE

Upgrade Event #606

Model	Controller	ECU P/No.		ROM ID
Model	Controller	ECU P/No.		Previous	New
PS	ACU	95910 B2000 95910 B2010 95910 B2100 95910 B2200	95910 B2300 95910 B2400 95910 B2500	471H6B9C 473H6B9C 481H6D9D	483H6D9D
PS	ACU	95910 B2000 95910 B2010 95910 B2100 95910 B2200	95910 B2300 95910 B2400 95910 B2500	H00H6B9C 493H6D9D	494H6D9D

To verify the vehicle is affected, be sure to check the Calibration Identification of the vehicle's ECM ROM ID and reference the Information Table as necessary.

NOTE: Prior to performing the ECU upgrade, be sure to check that the KDS is fully charged.

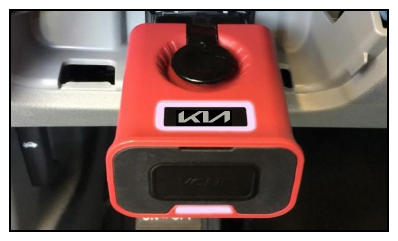

Connect the VCI-II to the OBD-II connector, located under the driver's side of the instrument panel.
NOTE: The ECU upgrade function on KDS operates wirelessly. It is not necessary to perform the upgrade via USB cable.

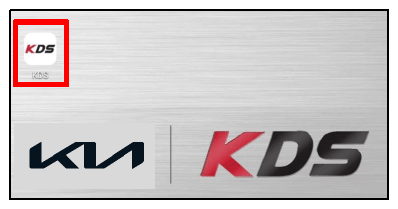

With the ignition ON , turn ON the KDS tablet. Select 'KDS' from the home screen.

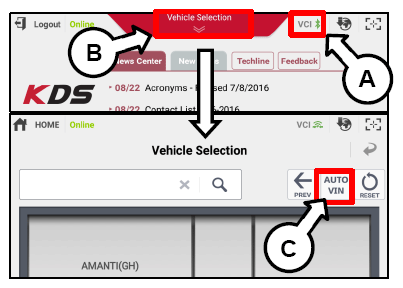

Confirm communication with VCI (A) and then configure the vehicle (B) using the 'AUTO VIN ' (C) feature.

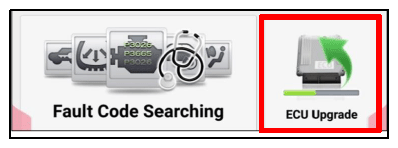

Select 'ECU Upgrade '.
The KDS will check the server for recently uploaded Events and then automatically download Upgrade Event(s) #606 .

NOTE: The vehicle must be identified in Vehicle Selection to download an Event for that vehicle.
Select Auto Mode .
CAUTION: Do NOT attempt to perform a Manual Mode upgrade UNLESS Auto Mode fails. Always follow the instructions given on the KDS in either Auto or Manual mode.

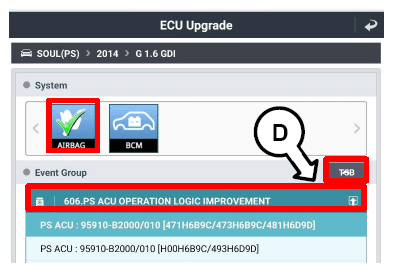

Select AIRBAG system and the corresponding software event for the vehicle.
- 606. PS ACU OPERATION LOGIC IMPROVEMENT
The ECU upgrade will begin and the progress of the upgrade will appear on the bar graph. Upgrade part (1-2>) (E) will download the upgrade event to the VCI-II. Upgrade part (2-2>) (F) will upgrade the ECU.

CAUTION: Do not touch the system buttons (like 'Back', 'Home', 'etc.') while performing ECU Upgrade.

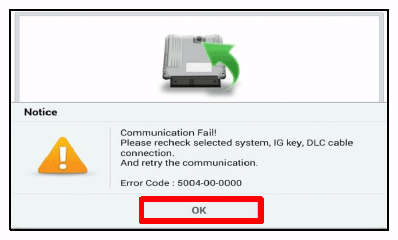

If a "Communication Fail" screen appears , verify that the VCI-II and KDS are communicating properly. Select 'OK' and restart the from step 4.

NOTE: If an error notice continues to appear or if the upgrade cannot be performed, DO NOT disconnect the KDS/VCI-II. Contact GIT America Help Desk at (888) 542-4371 or Techline.

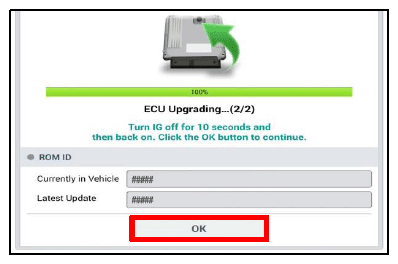

When instructed on the KDS, turn the ignition OFF for ten (10) seconds then back on. Select 'OK ' to continue.

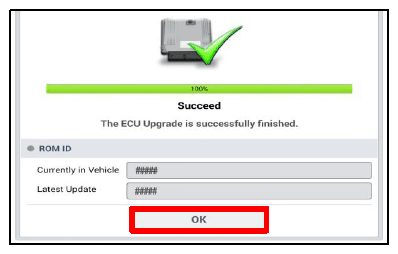

Once the upgrade is complete, select 'OK ' to finalize the procedure.
When prompted, select 'YES ' to check for Diagnostic Trouble Codes (DTC) and erase any DTCs stored such as EPS, ESC, and TPMS that may have been set during the upgrade.
Start the engine to confirm normal operation of the vehicle.

NOTE: The manual upgrade should ONLY be performed if the automatic upgrade fails.
If the automatic upgrade fails, DO NOT turn the ignition 'OFF'. Proceed to the 'Manual Mode' upgrade with the ignition 'ON'.
See table below for 'Manual Mode' passwords.

Manual Mode ECU Upgrade Passwords

Menu	Password
PS ACU: 95910-B2000/010 [471H6B9C/473H6B9C/481H6D9D]	2000
PS ACU: 95910-B2000/010 [H00H6B9C/493H6D9D]	2010
PS ACU: 95910-B2100-2/00-3/00/400 [471H6B9C/473H6B9C/481H6D9D]	2100
PS ACU: 95910-B2100-2/00-3/00/400 [H00H6B9C/493H6D9D]	2200
PS ACU: 95910-B2500 [471H6B9C/473H6B9C/481H6D9D]	2500
PS ACU: 95910-B2500 [H00H6B9C/493H6D9D]	2600

Within the ECU Upgrade screen displayed, select Manual Mode .
Select the AIRBAG system under the System selection menu. Select Upgrade Event #606 and select Upgrade to continue.
Select the appropriate control unit part number with reference to the ROM ID Information Table on page 3, and select OK .
Enter the appropriate password from the Manual Mode password table above and select OK .
The upgrade will begin and the progress of the upgrade will appear on the bar graph.
When instructed on the KDS , turn the ignition OFF for ten (10) seconds then back on. Select OK .
Once the upgrade is complete, select OK to finalize the procedure.
When prompted, select YES to check for Diagnostic Trouble Codes (DTC) and erase any DTCs stored such as EPS, ESC, and TPMS that may have been set during the upgrade.
Start the engine to confirm proper operation of the vehicle.

AFFECTED VEHICLE RANGE

Model	Production Date Range
2014MY Soul (PS)	July 21, 2013 to June 20, 2014

WARRANTY INFORMATION

N Code: N99 C Code: C99

Model	Claim Type	Causal P/N	Qty.	Repair Description	Labor Op Code	Op Time	Replacement P/N
Soul (PS)	R	95910 B2000	0	(SC229) ACU S/W Update	221040R0	0.3 M/H	N/A	0

NOTE: VIN inquiry data for this repair is provided for tracking purposes only. Kia retailers should reference SC229 when accessing the WebDCS system.
