Multi-Function Switch Replacement For Headlamp Flickering (ELE152)

Publication date: 2018-09-26
Reference number: ELE152

MULTI-FUNCTION SWITCH REPLACEMENT FOR HEADLAMP FLICKERING

TECHNICAL SERVICE BULLETIN

Reference Number(s): ELE152, Date of Issue: September 01, 2018

KIA:	2014 Soul (PS)
GROUP:	Electrical

SERVICE INFORMATION

This bulletin provides the procedure to replace the multi-function switch on some 2014MY Soul (PS) vehicles, produced from July 21, 2013 through June 20, 2014, which may exhibit intermittent flickering of the low/high beams. To duplicate the concern, repeatedly operate the multi-function switch by activating the following:

On/Auto/Off switch,
NOTE: Prior to proceeding , the headlight switch must be in the 'ON' or 'AUTO' position with the headlights ON to do the next two (2) headlight flicker/intermittent operation evaluations.
RH/LH Turn Signals activation/cancelation, and
High/Low Beam activation/cancelation (using different combinations).

If intermittent flickering of the low/high beams is duplicated, replace the multi-function switch by following the procedure outlined in this bulletin.

REPLACEMENT PROCEDURE

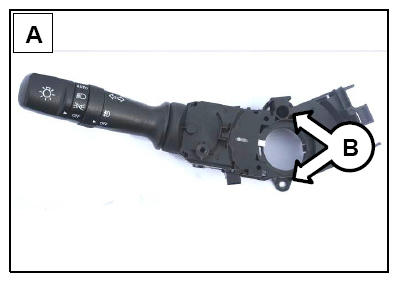

Replace the multi-function switch (A) by referring to the "Body Electrical Switch → Multifunction Switch → Repair procedures" chapter in the applicable Shop Manual on KGIS.
IMPORTANT: Be sure to replace the two (2) multi-function switch retaining screws (part no.: 12290 05121) (B) when installing the new switch (A).

AFFECTED VEHICLE RANGE

Model	Production Date Range
Soul (PS)	July 21, 2013 through June 20, 2014

REQUIRED TOOL

Tool Name	Tool Number	Figure	Comments
Generic Steering Wheel Removal	N/A		Locally sourced. This tool can be used in place of SST 09561 11001.

REQUIRED PART

Part Name	Part Number	Qty.

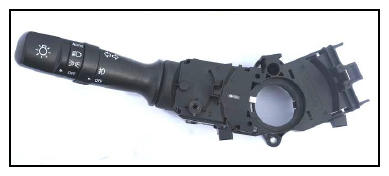

Multi-Function Switch	93410 B2001	1
	93410 B2011
	93410 B2101
	93410 B2111
Switch Retaining Screws	12290 05121	2

WARRANTY INFORMATION

N Code: B11 C Code: ZZ3

Claim Type	Causal P/N	Qty.	Repair Description	Labor Op Code	Op Time	Replacement P/N	Qty.
W	93410 B2000	0	Multi-Function Switch Replacement	93410F00	0.5 M/H	93410 B2001	1
						93410 B2011
						93410 B2101
						93410 B2111
						12290 05121	2
