Repair procedures: Replacement

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

Fig 1: Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
Loosen the bolts (A, B), and then remove the wheel speed sensor.
Tightening torque:

(A) 6.8 ~ 10.7N.m (0.7 ~ 1.1kgf.m, 5.0 ~ 7.9lb-ft)

(B) 8.8 ~ 13.7N.m (0.9 ~ 1.4kgf.m, 6.5 ~ 10.1lb-ft)

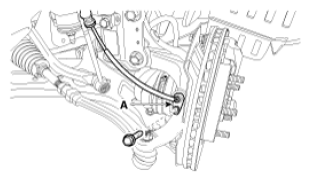

Fig 2: Wheel Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the brake hose bracket bolts (A).
Tightening torque:

8.8 ~ 13.7N.m (0.9 ~ 1.4kgf.m, 6.5 ~ 10.1lb-ft)

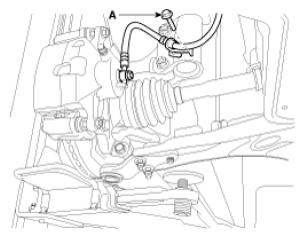

Fig 3: Brake Hose Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the stabilizer link (A) from the front strut assembly after loosening the nut (B).
Tightening torque:

98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3~86.8lb-ft)

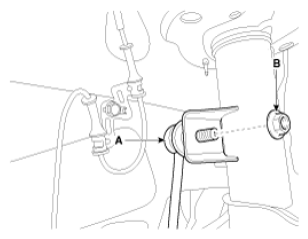

Fig 4: Stabilizer Link And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover.
(Refer to COWL TOP COVER )
Disconnect the front strut assembly (A) from the knuckle by loosening the bolt & nut.
Tightening torque:

137.3 ~ 156.9N.m (14.0 ~ 16.0kgf.m, 101.3 ~ 115.7lb-ft)
Remove the front strut assembly and then loosen the strut mounting nuts (A).
Tightening torque:

44.1 ~ 58.8N.m (4.5 ~ 6.0kgf.m, 32.5~43.4lb-ft)

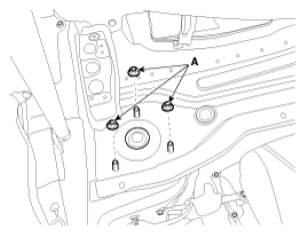

Fig 5: Strut Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
