Components and Components Location: Components

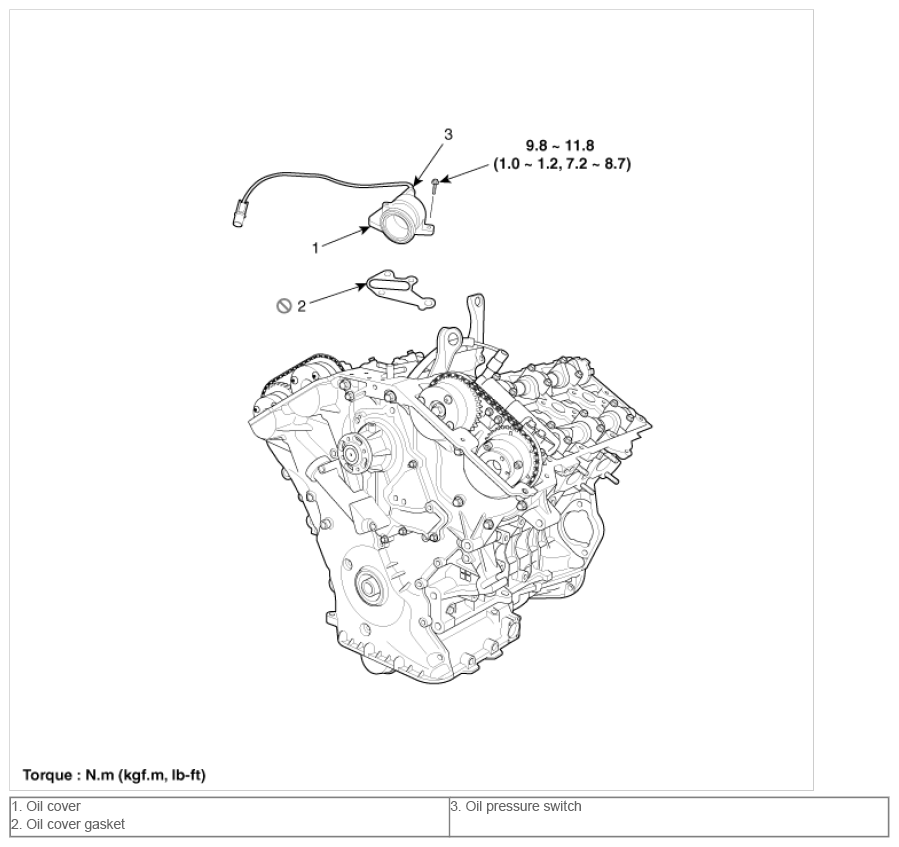

Fig 1: Oil Pressure Switch With Torque Specification
G09751002Courtesy of KIA MOTORS AMERICA, INC.
