Repair procedures: Installation

Install in the reverse order of removal.
NOTE:
- The existing valve body cover gasket must be replaced with new one. (Do not reuse it.)
- Perform the procedures below after replacing the solenoid valve.
1. Refill the automatic transaxle with fluid.
  (Refer to "FLUID ")
2. Reset the automatic transaxle adaptive values using the KDS.

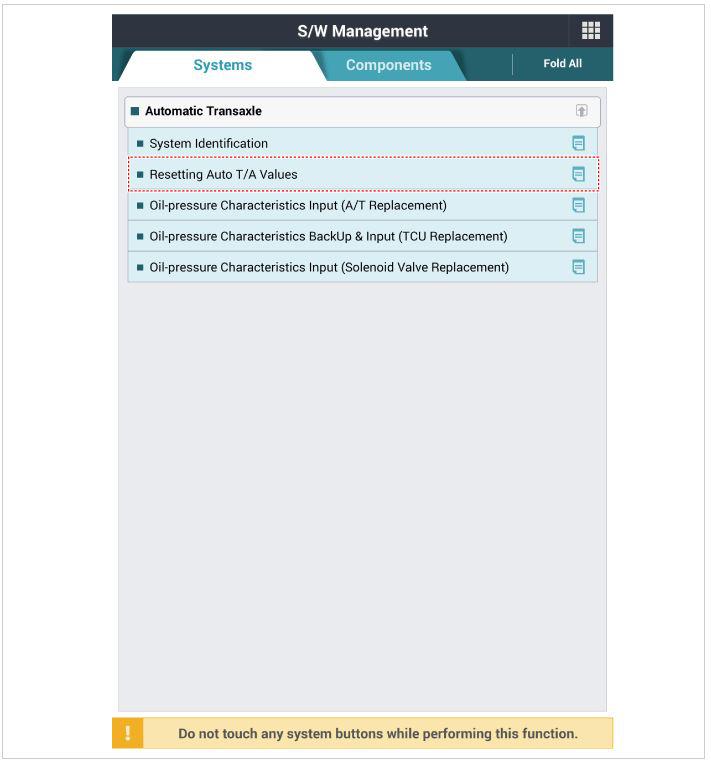

  Fig 1: Resetting Auto T/A Values Screen
  Courtesy of KIA MOTORS AMERICA, INC.
3. Perform the TCM adaptive values learning procedure.
  (Refer to "REPAIR PROCEDURES ")
4. Confirm that there is no fluid leakage on connections after repairing.
