Repair procedures: Installation

Installation is the reverse of removal.
NOTE:
- The existing valve body cover gasket must be replaced with new one. (Do not reuse it.)
- Perform the procedures below after replacing the solenoid valve.
1. Adding automatic transaxle fluid.
  (Refer to "FLUID ")
2. Reset the automatic transaxle adaptive values using the KDS.

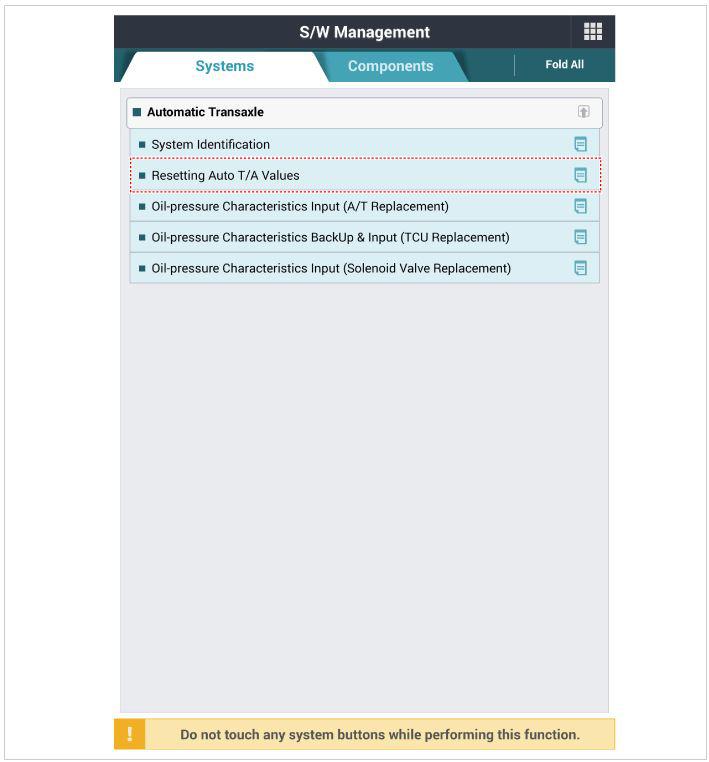

  Fig 1: Identifying Resetting Auto T/A Values Display Screen
  Courtesy of KIA MOTORS AMERICA, INC.
3. Perform the TCM adaptive values learning procedure.
  (Refer to "REPAIR PROCEDURES ")
4. Confirm that there is no fluid leakage on connections after repairing.
