Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the transaxle assembly.
(Refer to "MANUAL TRANSAXLE for 1.6L or MANUAL TRANSAXLE for 1.8L & 2.0L")

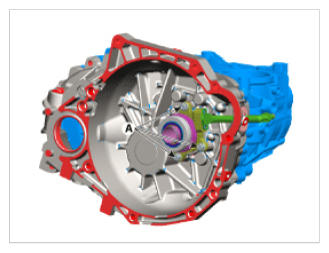

- Remove the concentric slave cylinder assembly from the transaxle case by removing bolts (A).
Tightening Torque:
19.6 ~ 26.5 N.m (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 lb-ft)
