Repair Procedures: Installation

NOTE:

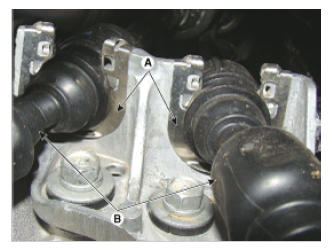

Install the control cable (B) and clip (A) on the bracket.

Fig 1: Control Cable And Clip
Courtesy of KIA MOTORS AMERICA, INC.

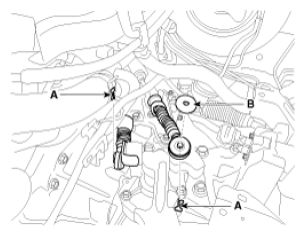

Install the washer (B) and pin (A).

Fig 2: Control Cable Washer And Pin
Courtesy of KIA MOTORS AMERICA, INC.

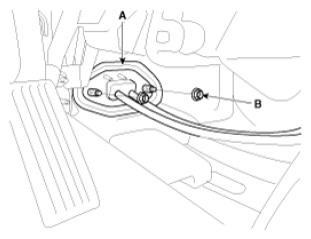

Tighten the nut (B) after install the retainer (A).
Tightening Torque:

11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

Fig 3: Control Cable Retainer And Nut
Courtesy of KIA MOTORS AMERICA, INC.

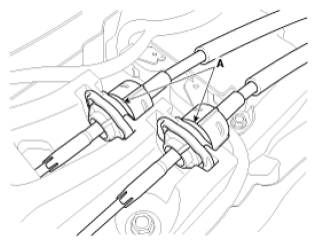

Install the cable socket (A) on the shift lever assembly.

Fig 4: Shift Lever Assembly Cable Socket
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift cable (B) and clip (A).

Fig 5: Installing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

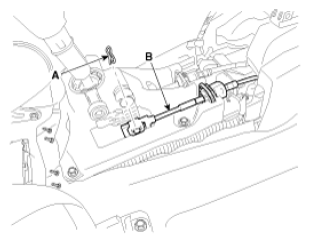

Shift lever to "3rd".
Install the snap pin (A) after install the select cable (B).
CAUTION:
- Install the snap pin (A) after adjust the select cable (B). (Refer to "ADJUSTMENT ")
Fig 6: Select Cable And Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.
Install the floor console assembly.
(Refer to "FLOOR CONSOLE ")
Install the battery and battery tray.
(Refer to "BATTERY for 2.0L or BATTERY for 1.8L")
Install the air cleaner assembly.
(Refer to "AIR CLEANER for 2.0L or AIR CLEANER for 1.8L")
