Components and Components Location: Components

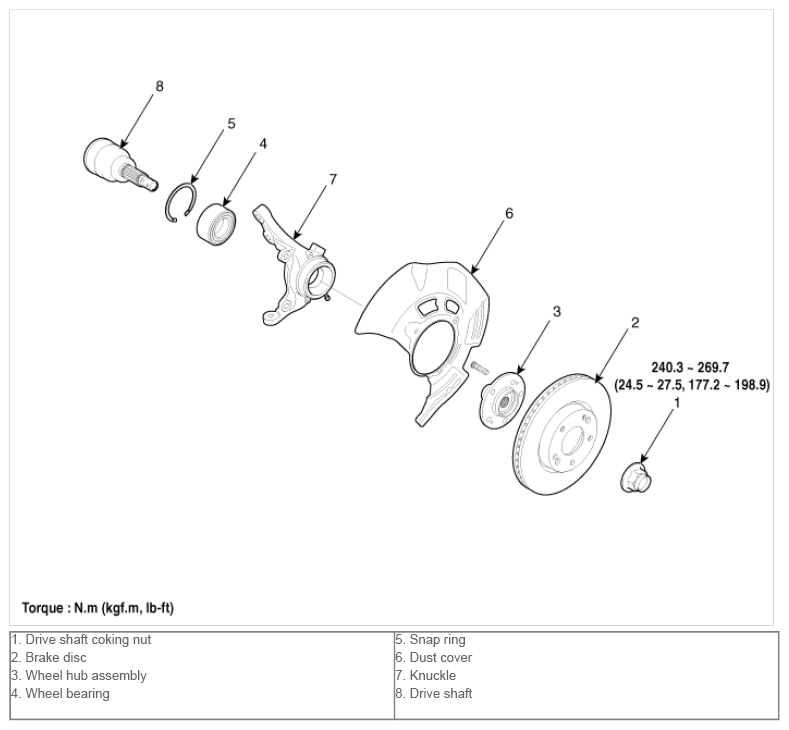

Fig 1: Front Hub/Knuckle Components With Torque Specifications
G09743410Courtesy of KIA MOTORS AMERICA, INC.
